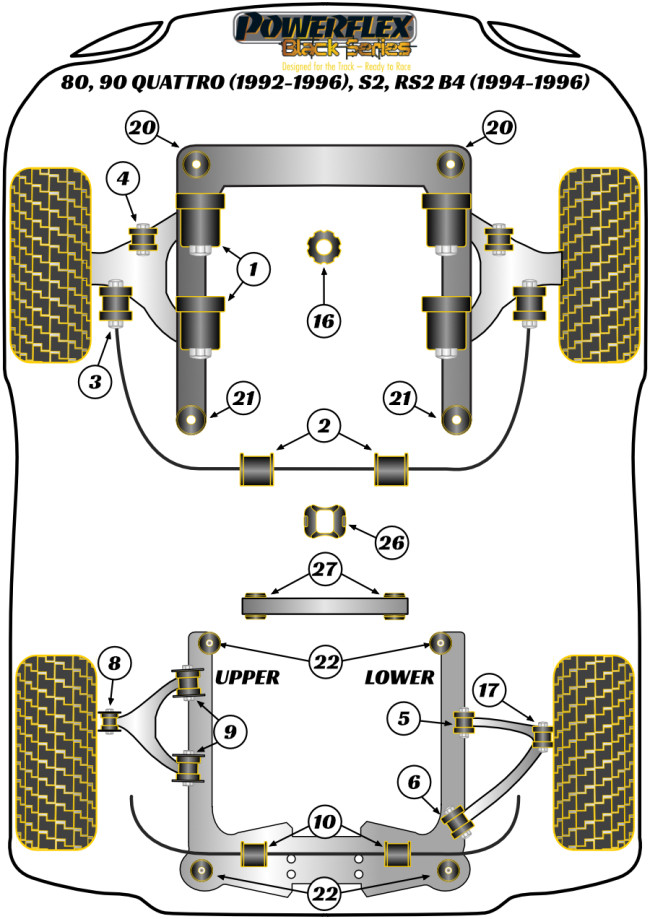

1. PFF3-102BLK – Front Wishbone Bush
This bush fits cast wishbones with 45mm bush. For pressed steel wishbones with 37mm bush, use PFF3-101.
OEM Part Number: Bush = 893407181 / 893 407 181
OEM Part Number: Arm = 893407147D / 893 407 147 D
OEM Part Number: Arm = 893407148D / 893 407 148 D
1. PFF3-101BLK – Front Wishbone Bush
This bush fits pressed steel front wishbones with 37mm bush. For cast wishbones with 45mm bush, fit PFF3-102.
OEM Part Number: Bush = 8A0407181 / 8A0 407 181
OEM Part Number: Arm = 895407147 / 895 407 147 / 895407148 / 895 407 148
OEM Part Number: Arm = 895407147A / 895 407 147 A / 895407148A / 895 407 148 A
2. PFF3-103-26BLK – Front Anti Roll Bar Mount 26mm
OEM Part Number: 811411327B / 811 411 327 B
3. PFF3-106-23.5BLK – Front Anti Roll Bar To Control Arm Bush
Fits models where there is no link rod between the anti roll bar and control arm.
3. PFF3-106-21.5BLK – Front Anti Roll Bar To Control Arm Bush
Fits models where there is no link rod between the anti roll bar and control arm.
5. PFR3-205BLK – Rear Lower Arm Front Bush
Fits The Pressed Steel Rear Lower Arm
OEM Part Number: Arm = a 8D0 505 311 / a 8D0 505 312
OEM Part Number: Bush = a 8D0 511 247
6. PFR3-206BLK – Rear Lower Arm Rear Bush
OEM Part Number: Arm = a 8D0 505 311 / a 8D0 505 312
OEM Part Number: Bush = a 8D0 511 523
8. PFR3-208BLK – Rear Upper Arm Outer Bush
OEM Part Number: Arm = 8D0505323A / 8D0505361A
OEM Part Number: Bush = 8A0505172B
9. PFR3-212BLK – Rear Upper Arm Inner Bush (Cast Arm)
Fits cast steel arms only. For pressed steel arms, use PFR3-209.
OEM Part Number: Bush = 8D0505185A
OEM Part Number: Arm = 8D0505323A
9. PFR3-209BLK – Rear Upper Arm Inner Bush (Pressed Arm)
Fits pressed steel arms only. For cast steel arms, use PFR3-212
OEM Part Number: Bush = 8A0505185A
OEM Part Number: Arm = 8D0505323B / 8D0505324B
10. PFR3-511-16BLK – Rear Anti Roll Bar Mount 16mm
OEM Part Number: 1J0511327B
OEM Part Number: 8A0511327E
10. PFR3-511-15BLK – Rear Anti Roll Bar Mount 15mm
OEM Part Number: 8D0511327D
16. PFF3-220BLK – Engine Snub Nose Mount
This part fits vehicles with a cylindrical engine mount spigot. For vehicles that use a D shape spigot, please use PFF3-221.
OEM Part Number: 8D0199339A
OEM Part Number: 8D0199339D
OEM Part Number: 8D0199339F
17. PFR3-217BLK – Rear Lower Wheel Bearing Housing Bush
PFR3-217 is a fit and forget part to instantly control movement of the rear suspension and maintain geometry settings.
OEM Part Number: 8D0505171
OEM Part Number: 8D0505171C
20. PFF3-120-12BLK – Front Subframe Front Bush 12mm
Check bolt diameter, this bush uses a 12mm bolt. For bushes which have a 10mm bolt use PFF3-120-10.
OEM Part Number: 859199415 / 859 199 415
20. PFF3-120-10BLK – Front Subframe Front Bush 10mm
Check bolt diameter, this bush uses a 10mm bolt. For bushes which have a 12mm bolt use
OEM Part Number: 857199415B / 857 199 415 B
21. PFF3-121-12BLK – Front Subframe Rear Bush 12mm
Check bolt diameter, this bush uses a 12mm bolt. For bushes which have a 10mm bolt use PFF3-121-10.
OEM Part Number: 8A0 199 419A
21. PFF3-121-10BLK – Front Subframe Rear Bush 10mm
Check bolt diameter, this bush uses a 10mm bolt. For bushes which have a 12mm bolt use PFF3-121-12.
OEM Part Number: 857199419B / 857 199 419B
22. PFR3-122BLK – Rear Subframe Mounting Bush
OEM Part Number: 8A0505145E
OEM Part Number: 8A0505145D
OEM Part Number: 8d0505145D
26. PFR3-126BLK – Gearbox Support Bush Insert
PFR3-126BLK is manufactured from our Black 95ShA material and fills the voids in the OE rubber mount to restrict movement, providing greater control at the front of the differential and increasing mount longevity for a part no longer available from Audi.
OEM Part Number: Bush = 8A0599133B / 8A0 599 133 B
27. PFR3-127BLK – Rear Differential Crossmember Bush
PFR3-127BLK is crafted from our Black 95ShA material, fitting both mounting positions and thereby reducing drivetrain deflection while preventing unwanted twisting at the rear of the differential.
OEM Part Number: Crossmember = A8D0599285 / A 8D0 599 285
OEM Part Number: Bush = A8A0599257 / A 8A0 599 257
