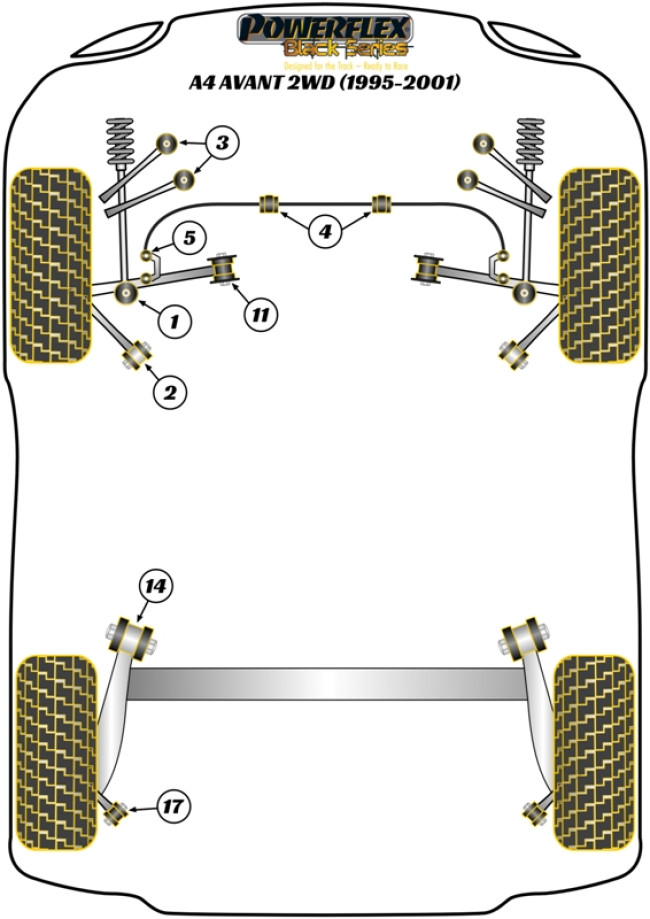

1. PFF3-201BLK – Front Lower Shock Mount
OEM Part Number: 4D0407181H
2. PFF3-202BLK – Front Tie Bar Rear Bush
OEM Part Number: 4F0407183 / 4F0407183E
OEM Part Number: 4D0407183AB / 4D0407183AC
3. PFF3-203BLK – Front Upper Control Arm Bush
OEM Part Number: 4B0407515 / 4D0407515C / 4E0407515D / 4H0407515B
OEM Part Number: 4E0407509 / 4E0 407 509 / 4E0407510 / 4E0 407 510
OEM Part Number: 8K0407515 / 8D0407515C
3. PFF3-203GBLK – Front Upper Control Arm Bush – Camber Adj
PFF3-203G allows you to fine-tune the front camber/caster/toe. Perfect for dialling in the alignment, improving the handling and minimizing tyre wear. The offset sleeve allows up to +/- 0.3° of camber adjustment.
OEM Part Number: 4B0407515 / 4D0407515C / 4E0407515D / 4H0407515B
OEM Part Number: 4E0407509 / 4E0 407 509 / 4E0407510 / 4E0 407 510
OEM Part Number: 8K0407515 / 8D0407515C
4. PFF3-204-26.8BLK – Front Anti Roll Bar Bush 26.8mm
Please check anti roll bar diameter before ordering.
OEM Part Number: Bush = 4D0411327G / 4D0 411 327 G
5. PFF3-213BLK – Front Anti Roll Bar Link Bush
Fits bracket with bolts at each end, does not fit bracket with ball joint at each end.
OEM Part Number: 8D0411317 – 8E0411317
11. PFF3-211BLK – Front Lower Arm Inner Bush
On some subframes where the arm fits into the subframe an extra lug is sometimes present and may require grinding away.
OEM Part Number: 4D0407182G
14. PFR3-214BLK – Rear Beam Mounting Bush
OEM Part Number: 8D0501541D
17. PFR3-217BLK – Rear Lower Wheel Bearing Housing Bush
PFR3-217 is a fit and forget part to instantly control movement of the rear suspension and maintain geometry settings.
OEM Part Number: 8D0505171
OEM Part Number: 8D0505171C
