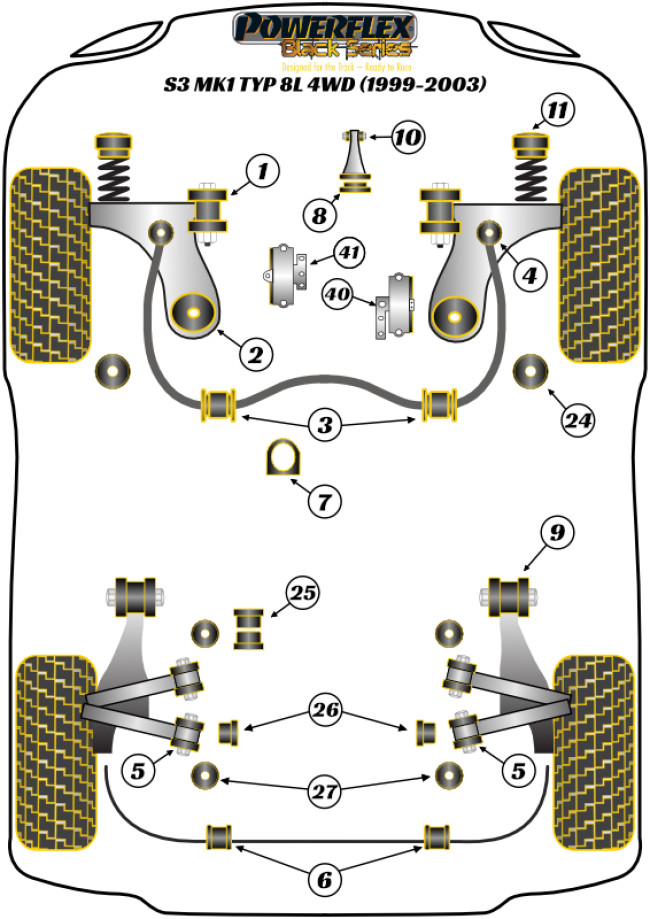

1. PFF3-501GBLK – Front Wishbone (Cast) Front Bush 45mm Camber Adjustable
This bush features a CNC-machined Stainless Steel sleeve with an offset bore that can be rotated using our bespoke tooling (supplied), giving +/- 0.5 degrees of on-car camber adjustment. For the smaller 30mm bush, please use part no. PFF85-201GBLK.
OEM Part Number: Bush = 8N0407182A / 8N0 407 182 A
OEM Part Number: Arm = 8N0 407 151 D / 8N0407151D / 8N0 407 152 D / 8N0407152D
OEM Part Number: Arm = 8N0 407 165 / 8N0407165 / 8N0 407 166 / 8N0407166
1. PFF85-201BLK – Front Wishbone Front Bush 30mm
If fitting on Audi TT MK1, S3 and A3 MK1 and Seat Leon & Cupra MK1 it fits earlier models with a 30mm diameter. It fits both the pressed and cast arms on the Leon & Cupra MK1 and A3 MK1 2WD. Please check original bush size. Later cars may use a larger 45mm bush PFF3-501. For an on-car camber adjustable version of this bush please use PFF85-201GBLK.
OEM Part Number: 357407182
OEM Part Number: 191407182
1. PFF3-501BLK – Front Wishbone (Cast) Front Bush 45mm
For the smaller 30mm bush, please use part no. PFF85-201
OEM Part Number: Bush = 8N0407182A / 8N0 407 182 A
OEM Part Number: Arm = 8N0 407 151 D / 8N0407151D / 8N0 407 152 D / 8N0407152D
OEM Part Number: Arm = 8N0 407 165 / 8N0407165 / 8N0 407 166 / 8N0407166
1. PFF85-201GBLK – Front Wishbone Front Bush 30mm Camber Adjustable
PFF85-201G gives +/- 0.5 degrees of camber adjustment. If fitting on Audi TT MK1, S3, and A3 MK1 and Seat Leon & Cupra MK1 it fits earlier models with a 30mm diameter. It fits both the pressed and cast arms on the Leon & Cupra MK1 and A3 MK1 2WD. Please check the original bush size. Later cars may use a larger (non-adjustable) 45mm bush PFF3-501.
OEM Part Number: 357407182
OEM Part Number: 191407182
2. PFF85-414BLK – Front Wishbone Rear Bush (Track/Race)
This is a rose-jointed bush with PU inserts. It is recommended for Track/Race use.
OEM Part Number: 1J0407181
OEM Part Number: 8N0407181
2. PFF3-610BLK – Front Wishbone (Cast) Rear Bush
Fits the Cast Front Wishbone.
OEM Part Number: Bush = 1J0 407 181 / 1J0407181 / 8N0 407 181 B / 8N0407181B
OEM Part Number: Arm = 8N0 407 151 D / 8N0407151D / 8N0 407 152 D / 8N0407152D
OEM Part Number: Arm = 8N0 407 165 / 8N0407165 / 8N0 407 166 / 8N0407166
3. PFF3-503-20BLK – Front Anti Roll Bar Mounting 20mm
OEM Part Number: 1J0411314P
4. PFF85-413BLK – Front Anti Roll Bar Link Bush Kit
Fits plastic link rods only, for aluminium link rods use PFF85-412. Not for link rods with ball joints on the ends.
OEM Part Number: 1J0411315K
OEM Part Number: 1J0411315H
5. PFR3-510BLK – Rear Arm Inner Bush
For an adjustable version of this bush please use PFR3-510G.
OEM Part Number: 1J0505323L
OEM Part Number: 1J0505323N
5. PFR3-510GBLK – Rear Arm Inner Bush Camber Adjustable
These bushes offer on-car adjustment of the rear camber angles of up to 2 degrees. For a non-adjustable version of this bush please use PFR3-510.
OEM Part Number: 1J0505323L
OEM Part Number: 1J0505323N
7. PFF85-416BLK – Steering Rack Mount Bush
OEM Part Number: 1J0422884A
8. PFF85-420BLK – Front Engine Mount Dog Bone (Motorsport)
Made in our hardest Black 95A material, this product is best suited to Track / Motorsport use. A small increase in NVH, usually at idle, should be expected when stiffening the connecting mounting between the engine/transmission and chassis. The harder the material used, the greater the NVH transmitted.
OEM Part Number: 1J0199851
OEM Part Number: 1J0199851AM
9. PFR3-508GBLK – Rear Trailing Arm Front Bush Toe Adjust
This part has been engineered to provide an additional 0.5 degrees positive toe adjustment, useful to correct excessive toe-in on heavily lowered cars. For a standard replacement part with no offset geometry, please use PFR3-508.
OEM Part Number: 1J0505171B
9. PFR3-508BLK – Rear Trailing Arm Front Bush
Also fits VW New Beetle Mk1 and Skoda Octavia MK1 4WD models. To adjust the vehicles rear toe angle, please use PFR3-508G.
OEM Part Number: 1J0505171B
10. PFF85-505BLK – Lower Engine Mount Small Bush
OEM Part Number: 1J0199851
OEM Part Number: 1K0199855
11. PFF85-430BLK – Front Strut Top Mount Bush
OEM Part Number: 1J0412331C
11. PFF85-431BLK – Front Strut Top Mount Bush -10mm
This part has been designed to reduce the ride height by 10mm when fitted as it allows the strut to sit higher into the body of the top mount. It is supplied with a new top cap spacer made using our 95A durometer material, meaning no more modifying of original parts. For standard ride height top mounts, please use PFF85-430BLK.
OEM Part Number: 1J0412331C
24. PFF85-424BLK – Front Subframe Rear Bush
OEM Part Number: 1J0199429
OEM Part Number: 8N0199282C
OEM Part Number: 8N0199282D
25. PFR85-425BLK – Rear Diff Front Mounting Bush
This part fits into diff mounting bracket OE number 1J0599271D.
OEM Part Number: 1J0599381A
OEM Part Number: 1J0599271D
26. PFR85-426BLK – Rear Diff Rear Mounting Bush
This part fits into subframe OE number 1J0505235F.
OEM Part Number: 1J0599257B
OEM Part Number: 1J0505235F
27. PFR85-427BLK – Rear Subframe Mounting Bush
This part fits into subframe OE number 1J0505235F.
OEM Part Number: 1J0505145B
OEM Part Number: 1J0505235F
40. PFF85-440BLK – Upper Engine Mount Insert
PFF85-440BLK uses our stiffest Black Series 95A material, providing a no-compromise performance option for track-focused builds. A small increase in NVH, usually at idle, should be expected when stiffening the connecting mount between the drivetrain and chassis. The harder the material used, the greater the NVH transmitted. Reducing engine/trans movement by way of upgraded inserts has the following benefits:
•tSharper throttle response
•tMore accurate gear changes
•tReduced wheel-hop
•tImproved Traction
•tProlonged mount life
OEM Part Number: 1JO 199 282 BF
41. PFF85-441BLK – Upper Gearbox Mount Insert
PFF85-441BLK uses our stiffest Black Series 95A material, providing a no-compromise performance option for track-focused builds. A small increase in NVH, usually at idle, should be expected when stiffening the connecting mount between the drivetrain and chassis. The harder the material used, the greater the NVH transmitted. Reducing engine/trans movement by way of upgraded inserts has the following benefits – Sharper throttle response – More accurate gear changes – Reduced wheel-hop – Improved Traction – Prolonged mount life. Does not fit mount 8N0199555C as fitted to S3 8L and TT Quattro 210/225PS with VIN 8L-Y-013 168>> onwards.
OEM Part Number: 1J019955 / 1J0 199 555
