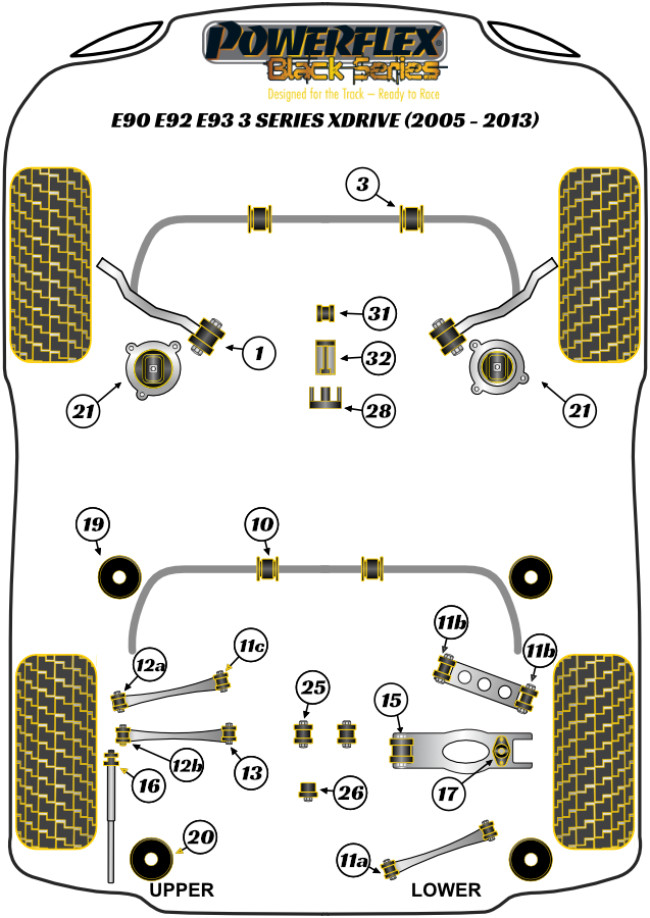

1. PFF5-5701BLK – Front Control Arm to Chassis Bush
OEM Part Number: 31126768818
3. PFF5-4602-26.5BLK – Front Anti Roll Bar Mounting Bush 26.5mm
OEM Part Number: Bush = 31356765574 / 31356773512 / 31356754994
OEM Part Number: Bar = 31356793171 / 31356793190 / 31356754993
3. PFF5-5703-26.5BLK – Front Anti Roll Bar Mounting Bush 26.5mm
Only fits vehicles from 05/2010 on with 31306787017 brackets fitted
OEM Part Number: 31306787017
10. PFR5-4609-15BLK – Rear Anti Roll Bar Bush 15mm
Please check anti roll bar diameter before ordering
OEM Part Number: 33556761360
10. PFR5-4609-13BLK – Rear Anti Roll Bar Bush 13mm
Please check anti roll bar diameter before ordering
OEM Part Number: 33556761002
10. PFR5-4609-12BLK – Rear Anti Roll Bar Bush 12mm
Please check anti roll bar diameter before ordering
OEM Part Number: Bush = 33556761001
OEM Part Number: Bar = 33556760995
OEM Part Number: Bar = 33556764424
10. PFR5-4609-11BLK – Rear Anti Roll Bar Bush 11mm
Please check anti roll bar diameter before ordering
OEM Part Number: Bush = 33536765584
13. PFR5-413BLK – Rear Upper Wishbone Inner Bush
Made in Black 95A, this cotton-reel design pairs a stainless-steel inner sleeve with a zinc-plated CNC-machined outer shell for articulation, durability, and improved load distribution.
OEM Part Number: Arm = 33322406292 / 33 32 2 406 292
15. PFR5-415BLK – Rear Lower Lateral Arm To Chassis Bush
OEM Part Number: 33326770829
16. PFR5-416BLK – Rear Upper Shock Mounting Bush 10mm
OEM Part Number: 33506767010 / 33506771737 / 33506771738
16. PFR5-416-12BLK – Rear Upper Shock Mounting Bush 12mm
OEM Part Number: 33506767010 / 33506771737 / 33506771738
17. PFR5-417BLK – Rear Lower Shock Mounting Bush & Bracket
PFR3-127BLK is crafted from our Black 95ShA material to provide even greater stiffness and connection between the rear damper/swing arm assembly.
OEM Part Number: 33 52 6 768 544 – Mount
OEM Part Number: 33 32 6 772 899 – Arm
19. PFR5-420BLK – Rear Subframe Front Mounting Bush (Track/Msport)
PFR5-420 is a full replacement bush and replicates the geometry of the original bush. PFF5-420 is made using our Black 95A durometer material, providing the stiffest link between subframe and chassis, for hard track and motorsport use. For inserts that fit into the OE bush use PFR5-419 for 33316758259 or PFR5-1920 for 33316792509.
OEM Part Number: 33316758259
OEM Part Number: 33316792509
19. PFR5-1220BLK – Rear Subframe Front Mounting Bush Anti-Squat (Track/Msport)
PFR5-1220BLK is a full replacement bush for non-M models to raise the front of the rear subframe by 9mm, providing the same anti-squat characteristic during acceleration as featured on M model vehicles and is made using our Black 95A durometer material, providing the stiffest link between subframe and chassis, for hard track and motorsport use. For standard subframe alignment, without anti-squat, please use PFR5-420.
OEM Part Number: 33312283382
19. PFR5-419BLK – Rear Subframe Front Mounting Insert
PFR5-419BLK is an Insert to be used with the OE rubber bush. For a full replacement bush use PFR5-420BLK
OEM Part Number: 33316758259
20. PFR5-422BLK – Rear Subframe Rear Mounting Bush (Track/Msport)
PFR5-422BLK is a full replacement bush and is made using our Black 95A durometer material, providing the stiffest link between subframe and chassis, for hard track and motorsport use. For inserts that fit into the OE bush use PFR5-421 for 33316758260 or PFR5-1921 for 33316792510.
OEM Part Number: 33316758260 / 33316768645
OEM Part Number: 33316792510 / 33312283383
20. PFR5-423BLK – Rear Subframe Rear Mounting Insert
Fits all diesel-engined cars, and all petrol and diesel-engined E91 Touring models. For all other petrol models, use PFR5-421. For a complete replacement bush, use PFR5-422.
OEM Part Number: 33316768645
20. PFR5-421BLK – Rear Subframe Rear Mounting Insert
PFR5-421BLK is an Insert to be used with the OE rubber bush. For a full replacement bush use PFR5-422BLK
OEM Part Number: 33316758260
21. PFF5-4020BLK – Engine Mount Insert Kit
PFF5-4020BLK and PFF5-4021BLK Engine Mount Insert Kits are an intermediate alternative to the BMW Motorsport aluminium inserts and much stiffer full replacement engine mounts available on the aftermarket. Made in our Black 95A durometer material, they are designed to fit the voiding of the OE mounts snuggly to restrict engine movement, perfect for those with tuned track cars. Their design and flexibility also mean they can be fitted to the vehicle without removing the engine mounts themselves. Reducing engine/transmission movement by way of upgraded inserts has the following benefits: – Sharper throttle response – Improved gear shifting – More direct power transfer – More balanced on/off throttle handling – Prolonged life of the OE mounts. A small increase in NVH, usually at idle, should be expected when stiffening the connecting mount between the engine and chassis. The harder the material used, the greater the NVH transmitted. Fits N52, N54, N55 and B58 engines only.
OEM Part Number: 22116787659 (Left) / 22116855460 (Right)
OEM Part Number: 22116760330 / 22116773744
25. PFR5-425BLK – Rear Diff Front Mounting Bush
OEM Part Number: 33176760287
OEM Part Number: 33316792513
26. PFR5-426BLK – Rear Diff Rear Mounting Bush
OEM Part Number: 33316769376 / 33176770866
OEM Part Number: 33316792514 / 33316880637
28. PFF5-4628BLK – Transfer Case Bush Insert (Motorsport)
PFF5-4628BLK Transmission Case Bush Insert (Motorsport) is made from our stiffest 95A Black Series material for Motorsport use, providing a no-compromise performance option for track-focused builds. An increase in NVH, usually at idle, should be expected when stiffening the mount between the transmission and chassis. The harder the material, the greater the NVH transmitted.
OEM Part Number: 22316773125
31. PFF5-4631BLK – Gear Shift Arm Front Bush Oval
Depending on vehicle application, this part can be 1 or 2 per car. Size 22mm W x 17mm H x 26mm L.
OEM Part Number: 25117507695
31. PFF5-4634BLK – Shift Arm Front Bush Ultra-Oval
PFF5-4634 Shift Arm Front Bush Ultra-Oval replaces the soft OE rubber bush fitted at the end of the gear shifter arm, a part often overlooked when upgrading transmission components. Made in our Black 95A durometer material, it eliminates play in the shifter assembly to restore precision and provide a more direct feel to enjoy fast and smooth shifting through the gears. Size: 26mm W x 17.5mm H x 21mm L.
OEM Part Number: Bush = 25117528407
OEM Part Number: Shift Arm = 25117547887
32. PFF5-4632BLK – Shifter Arm Rear Bush
Replaces the soft OE rubber bush that sits at the end of the gear shifter arm on manual transmission equipped vehicles, a part often overlooked when upgrading transmission components.
OEM Part Number: 25111222015
OEM Part Number: 25111221736
11a. PFR5-411BLK – Rear Toe Adjust Arm Inner & Outer Bush
OEM Part Number: 33326763092
11b. PFR5-411BLK – Rear Trailing Arm Inner & Outer Bush
OEM Part Number: 33326763092
11c. PFR5-411BLK – Rear Upper Control Arm To Chassis Bush
OEM Part Number: 33326763092
12a. PFR5-412BLK – Rear Upper Control Arm To Hub Bush
OEM Part Number: 33322406288 / 33 32 2 406 288
OEM Part Number: 33322406289 / 33 32 2 406 289
OEM Part Number: 33322409890 / 33 32 2 409 890
12b. PFR5-412BLK – Rear Upper Wishbone Outer Bush
OEM Part Number: Arm = 33322406292 / 33 32 2 406 292
