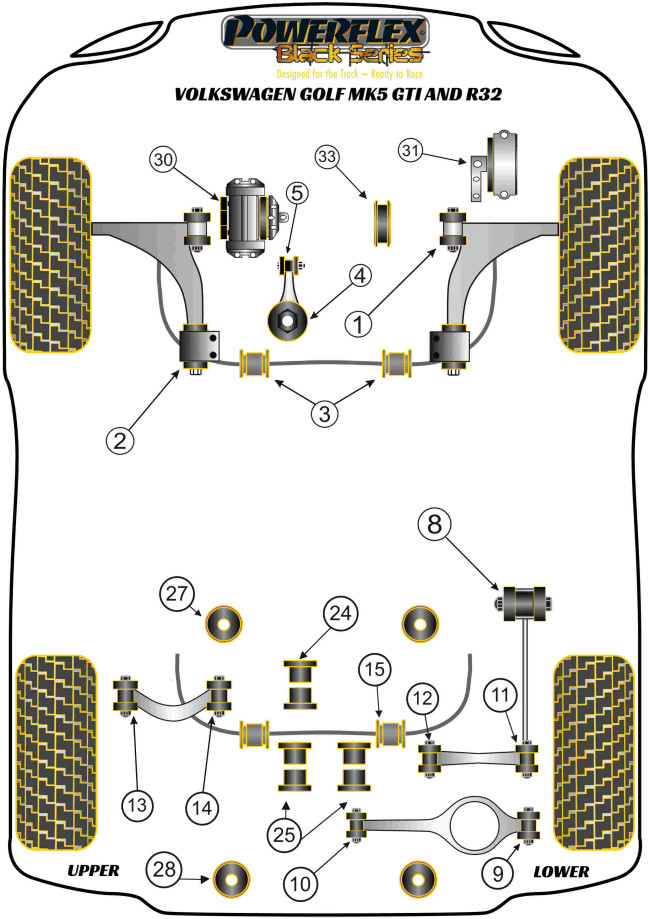

1. PFF85-501GBLK – Front Wishbone Front Bush Camber Adjustable
This bush features a CNC machined Stainless Steel sleeve with an offset bore that can be rotated using our bespoke tooling (supplied), giving +/- 0.5 degrees of on-car camber adjustment.
OEM Part Number: Bush = 1K0407182 / 5Q0407182 / 1K0407182A
OEM Part Number: Arm = 1K0407152BG (Steel)
OEM Part Number: Arm = 8J0407151D (Aluminium)
1. PFF85-501BLK – Front Wishbone Front Bush
OEM Part Number: Bush = 1K0407182 / 5Q0407182 / 1K0407182A
OEM Part Number: Arm = 1K0407152BG (Steel)
OEM Part Number: Arm = 8J0407151D (Aluminium)
2. PFF85-502GBLK – Front Wishbone Rear Bush Anti-Lift & Caster Offset
PFF85-502G is a low-resistance polyurethane bush and CNC machined bracket combination providing Anti-Lift and 1° of caster offset. Designed to improve steering precision and braking stability, the revised Anti-Lift and caster geometry provides extra grip and reduced understeer. It is designed to complement PFF85-501G Front Wishbone Front Bush to provide +/- 0.5° degrees of camber adjustment.
OEM Part Number: 1K0199231J / 1K0199232J
OEM Part Number: 1K0199231K / 1K0199232K
2. PFF85-502BLK – Front Wishbone Rear Bush
OEM Part Number: 3C0 199 231 / 3C0199231E / 3C0199231F
OEM Part Number: 1K0199 231 / 1K0199231J / 1K0199232J
3. PFF85-503-24BLK – Front Anti Roll Bar Bush 24mm
Please check anti roll bar diameter before ordering
OEM Part Number: Bar = 1K0411303 / 1K0 411 303
OEM Part Number: Bar = 7N0411303 / 7N0 411 303
3. PFF85-503-23.6BLK – Front Anti Roll Bar Bush 23.6mm
Please check anti roll bar diameter before ordering
OEM Part Number: 1K0411303 / 1K0 411 303
OEM Part Number: 1K0411303BK / 1K0 411 303 BK
3. PFF85-503-22.5BLK – Front Anti Roll Bar Bush 22.5mm
Please check anti roll bar diameter before ordering
OEM Part Number: 1K0411303
4. PFF85-504BLK – Lower Engine Mount Insert (Large) Motorsport
Made using our hardest Black 95A material, PFF85-504BLK fits vehicles up to mid-2008 and is recommended for Competition use. For vehicles from mid-2008 on use PFF85-704BLK. Being a stiffer material additional NVH may be experienced when fitting this part.
OEM Part Number: 1K0199867
OEM Part Number: 1K0199868
OEM Part Number: 3C0199867C / 3C0199867D / 3C0199867E
4. PFF85-704BLK – Lower Engine Mount Insert (Large) Motorsport
Made using our hardest Black 95A material, PFF85-704BLK fits vehicles from mid-2008 and is recommended for Competition use. For vehicles up to mid-2008 use PFF85-504BLK. Being a stiffer material additional NVH may be experienced when fitting this part.
OEM Part Number: 1K0199867 / 1K0199867R / 1K0199867Q
OEM Part Number: 1K0199868 / 1K0199868R
5. PFF85-505BLK – Lower Engine Mount Small Bush
OEM Part Number: 1J0199851
OEM Part Number: 1K0199855
8. PFR85-508BLK – Rear Tie Bar to Chassis Front Bush
OEM Part Number: Bush = 1K0505541D
OEM Part Number: Bush = 5C0501541A
9. PFR85-509BLK – Rear Lower Spring Mount Outer *
OEM Part Number: 1K050555 / 1K0505311
OEM Part Number: 1K0505311AB
10. PFR85-510BLK – Rear Lower Spring Mount Inner
OEM Part Number: Arm = 1K0505311AB
OEM Part Number: Bush = 1K0505171C
11. PFR85-511BLK – Rear Lower Track Rod Outer Bush
OEM Part Number: Arm = 1K0501529F / 1K0 501 529 F
OEM Part Number: Arm = 1K0501529J / 1K0 501 529 J
OEM Part Number: Arm = 1K0501529C / 1K0 501 529 C
12. PFR85-512BLK – Rear Lower Track Rod Inner Bush
OEM Part Number: Arm = 1K0501529F / 1K0 501 529 F
OEM Part Number: Arm = 1K0501529J / 1K0 501 529 J
OEM Part Number: Arm = 1K0501529C / 1K0 501 529 C
13. PFR85-513GBLK – Rear Upper Wishbone Outer Bush Camber Adjustable
PFR85-513G Rear Upper Wishbone Outer Bush is a camber adjustable version of our existing PFR85-513 Rear Wishbone Outer Bush for a variety of VAG models. Made in our Black 95A durometer material and supplied with a CNC-machined offset-bore sleeve and adjusting spanner, it offers a range of up to +/- 1.0° of on-car camber adjustment at the rear suspension knuckle.
OEM Part Number: Arm = 5Q0505323D / 5Q0 505 323 D
OEM Part Number: Arm = 5Q0505351B / 5Q0 505 351 B
OEM Part Number: Arm = 1K0505323N / 1K0 505 323 N
13. PFR85-513BLK – Rear Upper Wishbone Outer Bush
OEM Part Number: Arm = 5Q0505323D / 5Q0 505 323 D
OEM Part Number: Arm = 1K0505323N / 1K0 505 323 N
13. PFR85-513BLK – Rear Upper Wishbone Outer Bush
OEM Part Number: Arm = 5Q0505323D / 5Q0 505 323 D
OEM Part Number: Arm = 1K0505323N / 1K0 505 323 N
14. PFR85-514BLK – Rear Upper Wishbone Inner Bush
OEM Part Number: Arm = 5Q0505323D / 5Q0 505 323 D
OEM Part Number: Arm = 1K0505323N / 1K0 505 323 N
15. PFR85-515-21.7BLK – Rear Anti Roll Bar Bush 21.7mm
Please check anti roll bar diameter before ordering
OEM Part Number: 1K0511327AS
15. PFR85-515-20.7BLK – Rear Anti Roll Bar Bush 20.7mm
Please check anti roll bar diameter before ordering.
OEM Part Number: 1K0511327AR
15. PFR85-515-20.5BLK – Rear Anti Roll Bar Bush 20.5mm
Please check anti roll bar diameter before ordering
15. PFR85-515-19.6BLK – Rear Anti Roll Bar Bush 19.6mm
Please check anti roll bar diameter before ordering
OEM Part Number: 1K0511327AQ
15. PFR85-515-18.5BLK – Rear Anti Roll Bar Bush 18.5mm
Please check anti roll bar diameter before ordering.
OEM Part Number: 1K0511327AP
24. PFR85-523BLK – Rear Diff Front Mounting Bush
This bush fits models only where the bush location in the diff casing measures 30mm tall as found on AWD 2004-2015 PQ35 platform vehicles. If in doubt, measure the height of the front casing mount before ordering. If the mount is 35mm in height and the OEM part number on your vehicle is 1K0 599 437, please use PFR85-524.
OEM Part Number: 1K0599431
25. PFR85-525BLK – Rear Diff Rear Mounting Bush
Fits 4WD models only.
OEM Part Number: 1K0599437 / 1K0 599 437
OEM Part Number: 1K0599438 / 1K0 599 438
27. PFR85-527BLK – Rear Subframe Front Mounting Bush
This bush fits 4 wheel drive models only up to 28.5.2012.
OEM Part Number: 1K0505145J
28. PFR85-528BLK – Rear Subframe Rear Mounting Bush
This bush fits 4 wheel drive models only up to 28.5.2012.
OEM Part Number: 1K0505145K
OEM Part Number: 1K0505145H
30. PFF85-530BLK – Transmission Mount Insert
Designed to fill the voiding in the OE rubber mount, it smooths out gear changes by stiffening and supporting the often perished rubber bush, which is common for failure on tuned vehicles. This will provide a more precise and settled transmission response during acceleration and deceleration. A small increase in NVH, usually at idle, should be expected when stiffening the connecting mount between the engine/transmission and chassis. The harder the material used, the greater the NVH transmitted especially on diesel vehicles.
OEM Part Number: 1K0199555T / 1K0199555Q / 1K0199555R / 1K0199555L
OEM Part Number: 1K0199555M / 1K0199555N / 1K0199555AB
OEM Part Number: 1K0199555BE / 8P0199555 / 8P0199555A
31. PFF85-532BLK – Upper Engine Mount Insert
Designed to fill the voiding in the OE rubber mount, it smooths out gear changes by stiffening and supporting the often perished rubber bush, which is common for failure on tuned vehicles. This will provide a more precise and settled transmission response during acceleration and deceleration. A small increase in NVH, usually at idle, should be expected when stiffening the connecting mount between the engine/transmission and chassis. The harder the material used, the greater the NVH transmitted especially on diesel vehicles. Does not fit Audi TTRS or RS3 models.
OEM Part Number: 1K0199262M / 1K0 199 262 M
31. PFF85-531BLK – Upper Engine Mount Insert
PFF85-531BLK is an insert designed to fill the voids of the original bush. Please check voids of your original mount are the same as the image shown for correct fitment. Does not fit Audi TTRS or RS3 models.
OEM Part Number: 1K0199262AM / 1K0199262P
OEM Part Number: 1K0199262AR / 1K0199262AS / 1K0199262AT
OEM Part Number: 8J0199262
33. PFF85-533BLK – Steering Rack Mounting Bush
OEM Part Number: Repair Set = 1K0498884 / 1K0 498 884
OEM Part Number: Bush = 1K0423884B / 1K0 423 884 B
