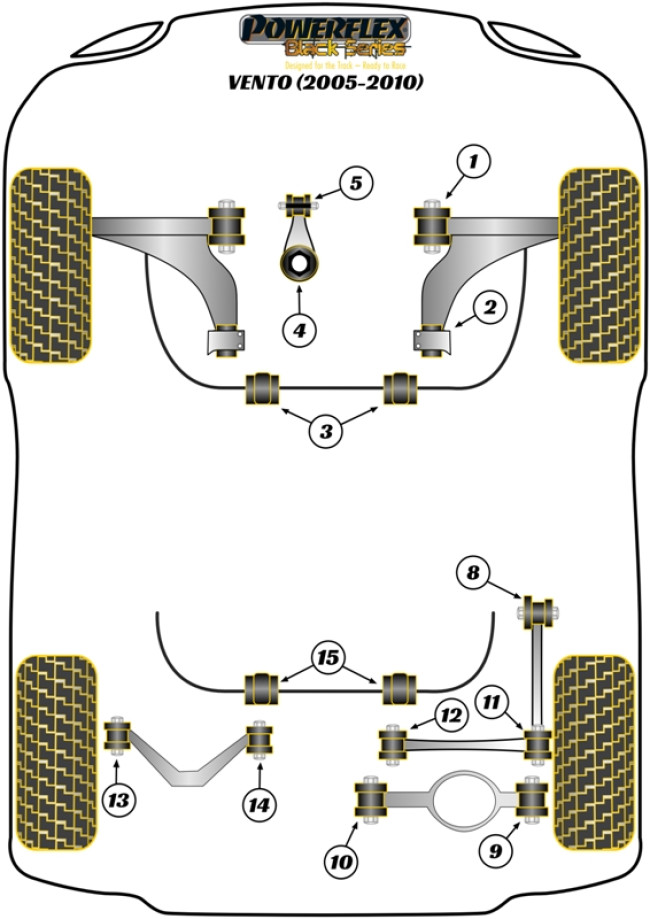

1. PFF85-501GBLK – Front Wishbone Front Bush Camber Adjustable
This bush features a CNC machined Stainless Steel sleeve with an offset bore that can be rotated using our bespoke tooling (supplied), giving +/- 0.5 degrees of on-car camber adjustment.
OEM Part Number: Bush = 1K0407182 / 5Q0407182 / 1K0407182A
OEM Part Number: Arm = 1K0407152BG (Steel)
OEM Part Number: Arm = 8J0407151D (Aluminium)
1. PFF85-501BLK – Front Wishbone Front Bush
OEM Part Number: Bush = 1K0407182 / 5Q0407182 / 1K0407182A
OEM Part Number: Arm = 1K0407152BG (Steel)
OEM Part Number: Arm = 8J0407151D (Aluminium)
2. PFF85-502GBLK – Front Wishbone Rear Bush Anti-Lift & Caster Offset
PFF85-502G is a low-resistance polyurethane bush and CNC machined bracket combination providing Anti-Lift and 1° of caster offset. Designed to improve steering precision and braking stability, the revised Anti-Lift and caster geometry provides extra grip and reduced understeer. It is designed to complement PFF85-501G Front Wishbone Front Bush to provide +/- 0.5° degrees of camber adjustment.
OEM Part Number: 1K0199231J / 1K0199232J
OEM Part Number: 1K0199231K / 1K0199232K
2. PFF85-502BLK – Front Wishbone Rear Bush
OEM Part Number: 3C0 199 231 / 3C0199231E / 3C0199231F
OEM Part Number: 1K0199 231 / 1K0199231J / 1K0199232J
3. PFF85-503-24BLK – Front Anti Roll Bar Bush 24mm
Please check anti roll bar diameter before ordering
OEM Part Number: Bar = 1K0411303 / 1K0 411 303
OEM Part Number: Bar = 7N0411303 / 7N0 411 303
3. PFF85-503-23BLK – Front Anti Roll Bar Bush 23mm
Please check anti roll bar diameter before ordering
OEM Part Number: Bar = 1K0411303
OEM Part Number: Bar = 1K0411303AM / 1K0 411 303 AM
3. PFF85-503-23.6BLK – Front Anti Roll Bar Bush 23.6mm
Please check anti roll bar diameter before ordering
OEM Part Number: 1K0411303 / 1K0 411 303
OEM Part Number: 1K0411303BK / 1K0 411 303 BK
3. PFF85-503-22.5BLK – Front Anti Roll Bar Bush 22.5mm
Please check anti roll bar diameter before ordering
OEM Part Number: 1K0411303
3. PFF85-503-21.7BLK – Front Anti Roll Bar Bush 21.7mm
Please check anti roll bar diameter before ordering
OEM Part Number: 1K0411303
4. PFF85-504BLK – Lower Engine Mount Insert (Large) Motorsport
Made using our hardest Black 95A material, PFF85-504BLK fits vehicles up to mid-2008 and is recommended for Competition use. For vehicles from mid-2008 on use PFF85-704BLK. Being a stiffer material additional NVH may be experienced when fitting this part.
OEM Part Number: 1K0199867
OEM Part Number: 1K0199868
OEM Part Number: 3C0199867C / 3C0199867D / 3C0199867E
4. PFF85-704BLK – Lower Engine Mount Insert (Large) Motorsport
Made using our hardest Black 95A material, PFF85-704BLK fits vehicles from mid-2008 and is recommended for Competition use. For vehicles up to mid-2008 use PFF85-504BLK. Being a stiffer material additional NVH may be experienced when fitting this part.
OEM Part Number: 1K0199867 / 1K0199867R / 1K0199867Q
OEM Part Number: 1K0199868 / 1K0199868R
5. PFF85-505BLK – Lower Engine Mount Small Bush
OEM Part Number: 1J0199851
OEM Part Number: 1K0199855
8. PFR85-508BLK – Rear Tie Bar to Chassis Front Bush
OEM Part Number: Bush = 1K0505541D
OEM Part Number: Bush = 5C0501541A
9. PFR85-509BLK – Rear Lower Spring Mount Outer *
OEM Part Number: 1K050555 / 1K0505311
OEM Part Number: 1K0505311AB
10. PFR85-510BLK – Rear Lower Spring Mount Inner
OEM Part Number: Arm = 1K0505311AB
OEM Part Number: Bush = 1K0505171C
11. PFR85-511BLK – Rear Lower Track Rod Outer Bush
OEM Part Number: Arm = 1K0501529F / 1K0 501 529 F
OEM Part Number: Arm = 1K0501529J / 1K0 501 529 J
OEM Part Number: Arm = 1K0501529C / 1K0 501 529 C
12. PFR85-512BLK – Rear Lower Track Rod Inner Bush
OEM Part Number: Arm = 1K0501529F / 1K0 501 529 F
OEM Part Number: Arm = 1K0501529J / 1K0 501 529 J
OEM Part Number: Arm = 1K0501529C / 1K0 501 529 C
13. PFR85-513GBLK – Rear Upper Wishbone Outer Bush Camber Adjustable
PFR85-513G Rear Upper Wishbone Outer Bush is a camber adjustable version of our existing PFR85-513 Rear Wishbone Outer Bush for a variety of VAG models. Made in our Black 95A durometer material and supplied with a CNC-machined offset-bore sleeve and adjusting spanner, it offers a range of up to +/- 1.0° of on-car camber adjustment at the rear suspension knuckle.
OEM Part Number: Arm = 5Q0505323D / 5Q0 505 323 D
OEM Part Number: Arm = 5Q0505351B / 5Q0 505 351 B
OEM Part Number: Arm = 1K0505323N / 1K0 505 323 N
13. PFR85-513BLK – Rear Upper Wishbone Outer Bush
OEM Part Number: Arm = 5Q0505323D / 5Q0 505 323 D
OEM Part Number: Arm = 1K0505323N / 1K0 505 323 N
13. PFR85-513BLK – Rear Upper Wishbone Outer Bush
OEM Part Number: Arm = 5Q0505323D / 5Q0 505 323 D
OEM Part Number: Arm = 1K0505323N / 1K0 505 323 N
14. PFR85-514BLK – Rear Upper Wishbone Inner Bush
OEM Part Number: Arm = 5Q0505323D / 5Q0 505 323 D
OEM Part Number: Arm = 1K0505323N / 1K0 505 323 N
15. PFR85-515-20.5BLK – Rear Anti Roll Bar Bush 20.5mm
Please check anti roll bar diameter before ordering
15. PFR85-515-19.6BLK – Rear Anti Roll Bar Bush 19.6mm
Please check anti roll bar diameter before ordering
OEM Part Number: 1K0511327AQ
15. PFR85-515-18.5BLK – Rear Anti Roll Bar Bush 18.5mm
Please check anti roll bar diameter before ordering.
OEM Part Number: 1K0511327AP
