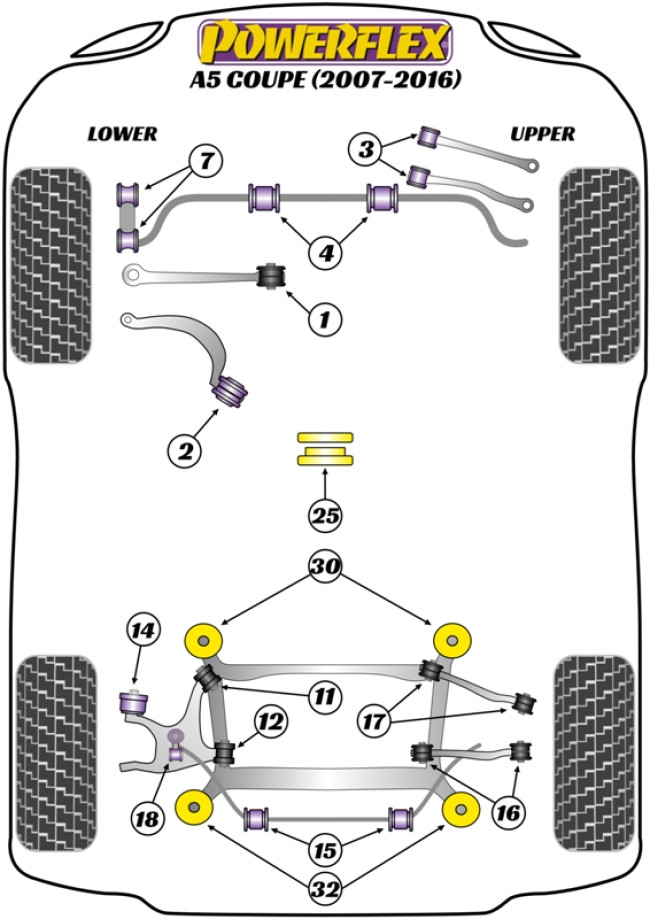

1. PFF3-701 – Front Lower Control Arm Inner Bush
PFF3-701 is a reinforced replacement bush that is 18% stiffer than the original bush to revitalise bush performance and restore steering precision.
OEM Part Number: 8K0407182B
OEM Part Number: 8K0407156C
2. PFF3-802G – Front Lower Radius Arm to Chassis Bush Caster Adjustable
This part fits arms with a 65mm diameter bush. For arms with a 75mm bush, please use PFF3-702G. This is a replacement part that in our road series application is over 100% stiffer than the original rubber bush to withstand increased loading seen by this position on the car. PFF3-802G provides +/- 0.5° caster offset that can be adjusted on the car for improved steering feel. Additional caster will also create additional negative camber on turn giving improved tyre contact with the road under heavy cornering. For a non-adjustable version of this bush please use PFF3-802.
OEM Part Number: Bush = 8K0407183A / 8K0 407 183 A
OEM Part Number: Arm = 8K0407693N / 8K0 407 693 N
OEM Part Number: Arm = 8K0407694N / 8K0 407 694 N
2. PFF3-702G – Front Lower Radius Arm to Chassis Bush Caster Adjustable
This part suits arms with a 75mm diameter bush. For arms with 65mm bushes, please use PFF3-802G. This is a replacement part that in our road series application is 35% stiffer than the original rubber bush to withstand increased loading seen by this position on the car. PFF3-702G provides +/- 0.5° caster offset that can be adjusted on the car for improved steering feel. Additional caster will also create additional negative camber on turn giving improved tyre contact with the road under heavy cornering. For a non-adjustable version of this bush please use PFF3-702.
OEM Part Number: Bush = 8K0407183F / 8K0 407 183 F
OEM Part Number: Bush = 4G0407183A / 4G0 407 183 A
OEM Part Number: Bush = 4H0407183B / 4H0 407 183 B
2. PFF3-802 – Front Lower Radius Arm to Chassis Bush
This part fits arms with a 65mm diameter bush. For arms with a 75mm bush, please use PFF3-702. This is a replacement part that in our road series application is over 100% stiffer than the original rubber bush to withstand increased loading seen by this position on the car. For a caster adjustable option, please use PFF3-802G.
OEM Part Number: Bush = 8K0407183A / 8K0 407 183 A
OEM Part Number: Arm = 8K0407693N / 8K0 407 693 N
OEM Part Number: Arm = 8K0407694N / 8K0 407 694 N
2. PFF3-702 – Front Lower Radius Arm to Chassis Bush
This part suits arms with a 75mm diameter bush. For arms with 65mm bushes, please use PFF3-802. This is a replacement part that in our road series application is 35% stiffer than the original rubber bush to withstand increased loading seen by this position on the car. For a caster adjustable option, please use PFF3-702G.
OEM Part Number: Bush = 8K0407183F / 8K0 407 183 F
OEM Part Number: Bush = 4G0407183 / 4G0 407 183
OEM Part Number: Bush = 4G0407183A / 4G0 407 183 A
3. PFF3-203G – Front Upper Control Arm Bush – Camber Adj
PFF3-203G allows you to fine-tune the front camber/caster/toe. Perfect for dialling in the alignment, improving the handling and minimizing tyre wear. The offset sleeve allows up to +/- 0.3° of camber adjustment.
OEM Part Number: 4B0407515 / 4D0407515C / 4E0407515D / 4H0407515B
OEM Part Number: 4E0407509 / 4E0 407 509 / 4E0407510 / 4E0 407 510
OEM Part Number: 8K0407515 / 8D0407515C
3. PFF3-203 – Front Upper Control Arm Bush
OEM Part Number: 4B0407515 / 4D0407515C / 4E0407515D / 4H0407515B
OEM Part Number: 4E0407509 / 4E0 407 509 / 4E0407510 / 4E0 407 510
OEM Part Number: 8K0407515 / 8D0407515C
4. PFF3-204-29 – Front Anti Roll Bar Bush 29mm
Please check anti roll bar diameter before ordering.
OEM Part Number: Bar = 8K0411309N / Bush = 8K0411327B
OEM Part Number: Bar = 4D0411309K / Bush = 4D0411327H
4. PFF3-204-28 – Front Anti Roll Bar Bush 28mm
Please check anti roll bar diameter before ordering.
OEM Part Number: Bush = 8K0411327B / 8K0 411 327 B
OEM Part Number: Bar = 4G0411309E / 4G0 411 309 E
4. PFF3-204-27 – Front Anti Roll Bar Bush 27mm
Please check anti roll bar diameter before ordering.
4. PFF3-204-26 – Front Anti Roll Bar Bush 26mm
Please check anti-roll bar diameter before ordering.
4. PFF3-204-26.8 – Front Anti Roll Bar Bush 26.8mm
Please check anti roll bar diameter before ordering.
OEM Part Number: Bush = 4D0411327G / 4D0 411 327 G
4. PFF3-204-26.5 – Front Anti Roll Bar Bush 26.5mm
Please check anti-roll bar diameter before ordering.
OEM Part Number: Bush = 4D0411327G / 4D0 411 327 G
OEM Part Number: Bar = 8K0411309L / 8K0 411 309 L
4. PFF3-204-25 – Front Anti Roll Bar Bush 25mm
Please check anti roll bar diameter before ordering.
OEM Part Number: Bush = 8K0411327A / 8K0 411 327 A
OEM Part Number: Bar = 8K0411309M / 8K0 411 309 M
4. PFF3-204-25.6 – Front Anti Roll Bar Bush 25.6mm
Please check anti roll bar diameter before ordering.
OEM Part Number: Bush = 8K0411327A / 8K0 411 327 A
OEM Part Number: Bar = 8K0411309K / 8K0 411 309 K
4. PFF3-204-24 – Front Anti Roll Bar Bush 24mm
Please check anti roll bar diameter before ordering.
OEM Part Number: 8K0 411 327 A
4. PFF3-204-23 – Front Anti Roll Bar Bush 23mm
Please check anti roll bar diameter before ordering.
OEM Part Number: 8K0 411 327 A
7. PFF3-913-10 – Front Anti Roll Bar Link Bush 10mm
PFF3-913-10 fits vehicles with 170mm long anti roll bar links with a 10mm bolt. For 12mm bolts please use PFF3-913-12.
OEM Part Number: 4M0411317
OEM Part Number: 4G0411317A
7. PFF3-213 – Front Anti Roll Bar Link Bush
Fits bracket with bolts at each end, does not fit bracket with ball joint at each end.
OEM Part Number: 8D0411317D
OEM Part Number: 8K0411317C / 8K0411317D / 8K0411317E
11. PFR3-711 – Rear Lower Arm Front Bush
OEM Part Number: 8K0505185E
OEM Part Number: 8R0505311F
12. PFR3-712 – Rear Lower Arm Rear Bush
PFR3-712 is a reinforced replacement bush to revitalise bush performance and provide stability to the rear suspension.
OEM Part Number: 8K0505171E
OEM Part Number: 8R0505311F
14. PFR3-714 – Rear Wheel Bearing Housing Bush
OEM Part Number: 8K0505279E
15. PFR85-515-21.7 – Rear Anti Roll Bar Bush 21.7mm
Please check anti roll bar diameter before ordering
OEM Part Number: 1K0511327AS
15. PFR85-515-19.6 – Rear Anti Roll Bar Bush 19.6mm
Please check anti roll bar diameter before ordering
OEM Part Number: 1K0511327AQ
16. PFR3-716 – Rear Upper Wishbone Outer Bush
OEM Part Number: Bush = 8K0501541
OEM Part Number: Arm = 8K0505323H
OEM Part Number: Arm = 8K0505324H
16. PFR3-716 – Rear Upper Wishbone Inner Bush
OEM Part Number: Bush = 8K0501541
OEM Part Number: Arm = 8K0505323H
OEM Part Number: Arm = 8K0505324H
17. PFR3-715 – Rear Lower Track Rod Outer Bush
PFR3-715 is a reinforced replacement bush to revitalise bush performance and provide stability to the rear suspension.
OEM Part Number: 8K0501529N
OEM Part Number: 8K0501530N
OEM Part Number: 8K0501529L
17. PFR3-715 – Rear Lower Track Rod Inner Bush
PFR3-715 is a reinforced replacement bush to revitalise bush performance and provide stability to the rear suspension.
OEM Part Number: 8K0501529N
OEM Part Number: 8K0501530N
OEM Part Number: 8K0501529L
18. PFR3-718 – Rear Anti Roll Bar Link Bush
OEM Part Number: 8K0505465G
25. PFF3-725 – Transmission Mount Insert
PFF3-725 is a two-part insert designed to limit transmission movement under load. The lower A-Bush acts to fill the voiding of the original rubber mount, while the upper B-Bush acts as a buffer to eliminate movement between the upper and lower portions of the mount. An increase in NVH should be expected when stiffening the connecting mount between the transmission and chassis. The harder the material, the greater the NVH transmitted. If the increased NVH is considered too much, the upper B-Bush can be removed to relieve this. For the Audi A7, this part only fits front-wheel drive models.
OEM Part Number: 8K0399151BC / 8K0399151BD / 8K0399115BK
OEM Part Number: 8K0399151CD / 8K0399151CL
OEM Part Number: 8K0399151DB / 8K0399151DC
30. PFR3-735 – Rear Subframe Front Bush Insert
This is an insert to fill the voids and limit movement in the original bush. It fits the following subframes only: 8F0505235F, 8F0505235J, 8F0505235G. For a full replacement bush, please use PFR3-730.
OEM Part Number: Bush = 4G0505145B / 4G0 505 145 B
OEM Part Number: Bush = 4G0505145G / 4G0 505 145 G
OEM Part Number: Subframe = 8F0505235F / 8F0505235J / 8F0505235G
30. PFR3-731 – Rear Subframe Front Bush Insert
This is an insert to fill the voids and limit movement in the original bush. For the A5, it fits the following subframes only: 8K0505235AA, 8K0505235AL. For a full replacement bush, please use PFR3-730.
OEM Part Number: Bush = 8K0505145B / 8K0 505 145 B
OEM Part Number: Bush = 8R0505145J / 8R0 505 145 J
OEM Part Number: A5 Subframe = 8K0505235AA / 8K0505235AL
30. PFR3-730 – Rear Subframe Front Bush
This is a replacement bush, for an insert that fits into the original bush OE number: 8K0505145B please use PFR3-731, for an insert to fit the original bush OE number: 4G0505145B please use PFR3-737.
OEM Part Number: 8K0505145B
OEM Part Number: 4G0505145B
32. PFR3-737 – Rear Subframe Rear Bush Insert
This is an insert to fill the voids and limit movement in the original bush. It fits the following subframes only: 8F0505235F, 8F0505235J, 8F0505235G. For a full replacement bush, please use PFR3-732.
OEM Part Number: Bush = 4G0505145C / 4G0 505 145 C
OEM Part Number: Subframe = 8F0505235F / 8F0505235J / 8F0505235G
32. PFR3-733 – Rear Subframe Rear Bush Insert
This is an insert to fill the voids and limit movement in the original bush. For the A5, it fits the following subframes only: 8K0505235AA, 8K0505235AL. For a full replacement bush, please use PFR3-732.
OEM Part Number: Bush = 8K0505145C / 8K0 505 145 C
OEM Part Number: Bush = 8R0505145A / 8R0 505 145 A
OEM Part Number: A5 Subframe = 8K0505235AA / 8K0505235AL
32. PFR3-732 – Rear Subframe Rear Bush
This is a full replacement bush. For an insert that fits into the original bush OE number: 8K0505145C please use PFR3-733. For an insert to fit the original bush OE number: 4G0505145C, please use PFR3-735.
OEM Part Number: Bush = 8K0505145C / 8K0 505 145 C
OEM Part Number: Bush = 4G0505145C / 4G0 505 145 C
OEM Part Number: Bush = 8R0505145A / 8R0 505 145 A
PF3-1661 – Jack Pad Adaptor
PF3-1661 is a polyurethane jack pad to fit around and protect the sill, designed to help lift stability and location, whilst protecting the underside of your vehicle.
OEM Part Number: 8K0 802 247 B
