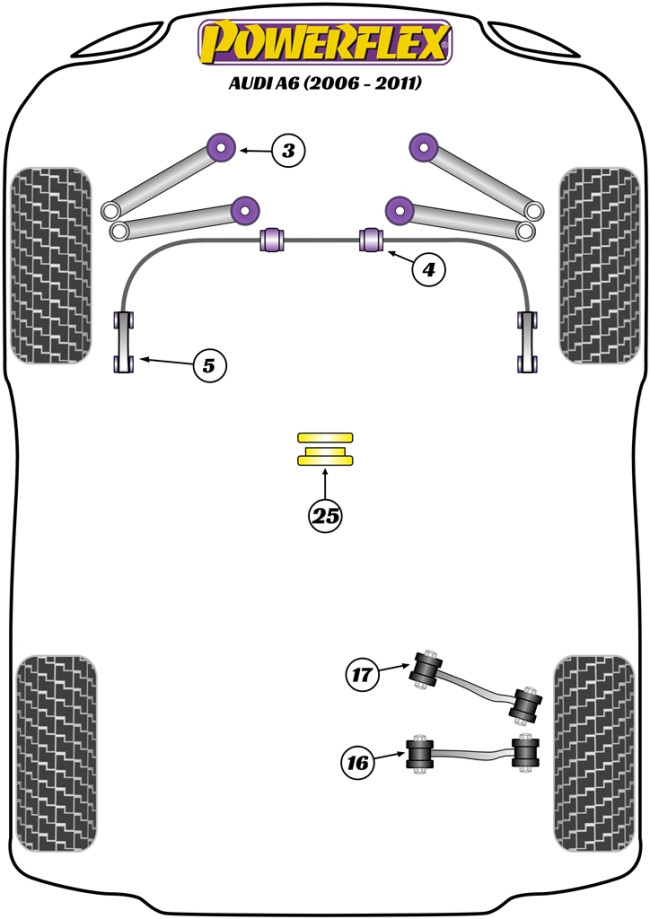

3. PFF3-203G – Front Upper Control Arm Bush – Camber Adj
PFF3-203G allows you to fine-tune the front camber/caster/toe. Perfect for dialling in the alignment, improving the handling and minimizing tyre wear. The offset sleeve allows up to +/- 0.3° of camber adjustment.
OEM Part Number: 4B0407515 / 4D0407515C / 4E0407515D / 4H0407515B
OEM Part Number: 4E0407509 / 4E0 407 509 / 4E0407510 / 4E0 407 510
OEM Part Number: 8K0407515 / 8D0407515C
3. PFF3-203 – Front Upper Control Arm Bush
OEM Part Number: 4B0407515 / 4D0407515C / 4E0407515D / 4H0407515B
OEM Part Number: 4E0407509 / 4E0 407 509 / 4E0407510 / 4E0 407 510
OEM Part Number: 8K0407515 / 8D0407515C
4. PFF3-204-31.5 – Front Anti Roll Bar Bush 31.5mm
Please check anti roll bar diameter before ordering.
OEM Part Number: Bar = 8E0411309N / Bush = 4D0411327J
5. PFF3-213 – Front Anti Roll Bar Link Bush
Fits bracket with bolts at each end, does not fit bracket with ball joint at each end.
OEM Part Number: 8D0411317D
OEM Part Number: 8K0411317E
OEM Part Number: 8K0411317D
16. PFR3-716 – Rear Upper Wishbone Inner Bush
OEM Part Number: Bush = 8K0501541
OEM Part Number: Arm = 8K0505323H
OEM Part Number: Arm = 8K0505324H
17. PFR3-715 – Rear Lower Track Rod Inner Bush
PFR3-715 is a reinforced replacement bush to revitalise bush performance and provide stability to the rear suspension.
OEM Part Number: 8K0501529N
OEM Part Number: 8K0501530N
OEM Part Number: 8K0501529L
25. PFF3-725 – Transmission Mount Insert
PFF3-725 is a two-part insert designed to limit transmission movement under load. The lower A-Bush acts to fill the voiding of the original rubber mount, while the upper B-Bush acts as a buffer to eliminate movement between the upper and lower portions of the mount. An increase in NVH should be expected when stiffening the connecting mount between the transmission and chassis. The harder the material, the greater the NVH transmitted. If the increased NVH is considered too much, the upper B-Bush can be removed to relieve this. For the Audi A7, this part only fits front-wheel drive models.
OEM Part Number: 8K0399151BC / 8K0399151BD / 8K0399115BK
OEM Part Number: 8K0399151CD / 8K0399151CL
OEM Part Number: 8K0399151DB / 8K0399151DC
PF3-1660 – Jack Pad Adaptor
PF3-1660 is a polyurethane jack pad to fit into the plastic lifting points found on a large number of performance Audi vehicles and is designed to help lift stability and location, whilst protecting the underside of your vehicle.
OEM Part Number: 420803855A / 8J0 802 845D
OEM Part Number: 4F0 802 845 / 4F0 802 847
OEM Part Number: 4G0 802 845 / 4G0 802 847
