Powerflex-puslat A3 / S3 / RS3
Powerflex-puslat ovat markkinoiden suosituin uretaanipuslamerkki. Powerflexin polyuretaanipuslat antavat alustalle jämäkkyyttä, joka tuntuu ajotuntumassa ja renkaiden vähäisemmässä kulumisessakin, kun pyöränkulmat eivät pääse muuttumaan kovassa rasituksessa väljien puslien takia. Tavalliseen katuajoon suosittelemme road-sarjan puslia. Black-sarjan puslat ovat jo melko jäykkiä, joten ne sopivat kilpakäyttöön radalle tai muuhun vastaavaan vaativaan käyttöön
LISÄTIEDOT

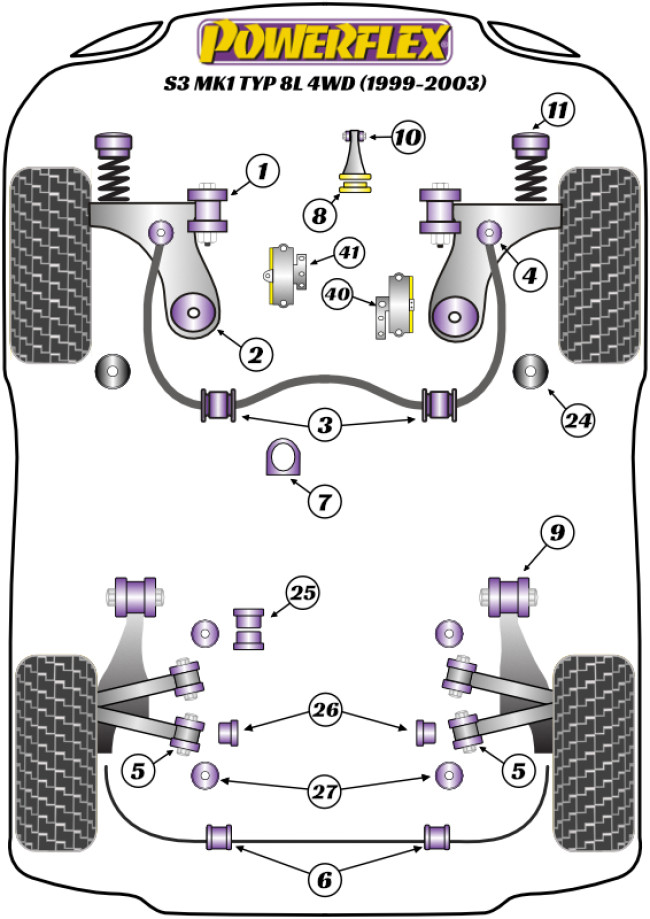

1. PFF3-501
For the smaller 30mm bush, please use part no. PFF85-201
1. PFF3-501G
This bush features a CNC machined Stainless Steel sleeve with an offset bore that can be rotated using our bespoke tooling (supplied), giving +/- 0.5 degrees of on-car camber adjustment. For the smaller 30mm bush, please use part no. PFF85-201G CNC machined stainless steel sleeve with knurled end pattern to prevent unwanted rotation.Rotate to adjust camber.
1. PFF85-201
If fitting on Audi TT MK1, S3 and A3 MK1 and Seat Leon & Cupra MK1 it fits earlier models with a 30mm diameter. It fits both the pressed and cast arms on the Leon & Cupra MK1 and A3 MK1 2WD. Please check original bush size. Later cars may use a larger 45mm bush PFF3-501. For an on-car camber adjustable version of this bush please use PFF85-201G.
1. PFF85-201G
PFF85-201G gives +/- 0.5 degrees of camber adjustment. If fitting on Audi TT MK1, S3 and A3 MK1 and Seat Leon & Cupra MK1 it fits earlier models with a 30mm diameter. It fits both the pressed and cast arms on the Leon & Cupra MK1 and A3 MK1 2WD. Please check original bush size. Later cars may use a larger (nonadjustable) 45mm bush PFF3-501. PFF85-201G bush features a CNC machined Stainless Steel sleeve with an offset bore that can be rotated using our bespoke tooling (supplied), giving +/- 0.5 degrees of camber adjustment. For a non-offset version of this bush please use PFF85-201.Knurled end faces prevent sleeve rotation to retain suspension geometry.PFF85-201G boosts stiffness over the original part by 15%.
2. PFF3-610
Fits the Cast Front Wishbone.
2. PFF85-414
This is a rose-jointed bush with PU inserts. It is recommended for Track/Race use.
4. PFF85-413
Fits plastic link rods only, for aluminium link rods use PFF85-412. Not for link rods with ball joints on the ends.
5. PFR3-510
For an adjustable version of this bush please use PFR3-510G.
5. PFR3-510G
These bushes offer on-car adjustment of the rear camber angles of up to 2 degrees. For a non-adjustable version of this bush please use PFR3-510.
8. PFF85-420
Please have a look at this quick guide on how to fit PFF85-420 and associated part PFF85-505
8. PFF85-420R
This bush is made in our softer Red 65A material. For petrol or modified vehicles, use PFF85-420 Please have a look at this quick guide on how to fit PFF85-420 and associated partPFF85-505
9. PFR3-508
Also fits VW New Beetle Mk1 and Skoda Octavia MK1 4WD models. To adjust the vehicles rear toe angle, please use PFR3-508G.
9. PFR3-508G
This part has been engineered to provide an additional 0.5 degrees positive toe adjustment, useful to correct excessive toe-in on heavily lowered cars. For a standard replacement part with no offset geometry, please use PFR3-508.
11. PFF85-431
This part has been designed to give an extra 10mm of lowering when fitted as it allows the strut to sit higher into the body of the top mount. These new top mounts ship complete with new top cap spacers, made using our Black material – this additional part means no more modifying of original parts is required. If you wanted to fit our top mounts without the ride height change, you would need to fit part number PFF85-430
25. PFR85-425
This part fits into diff mounting bracket OE number 1J0599271D.
26. PFR85-426
This part fits into subframe OE number 1J0505235F.
27. PFR85-427
This part fits into subframe OE number 1J0505235F.
