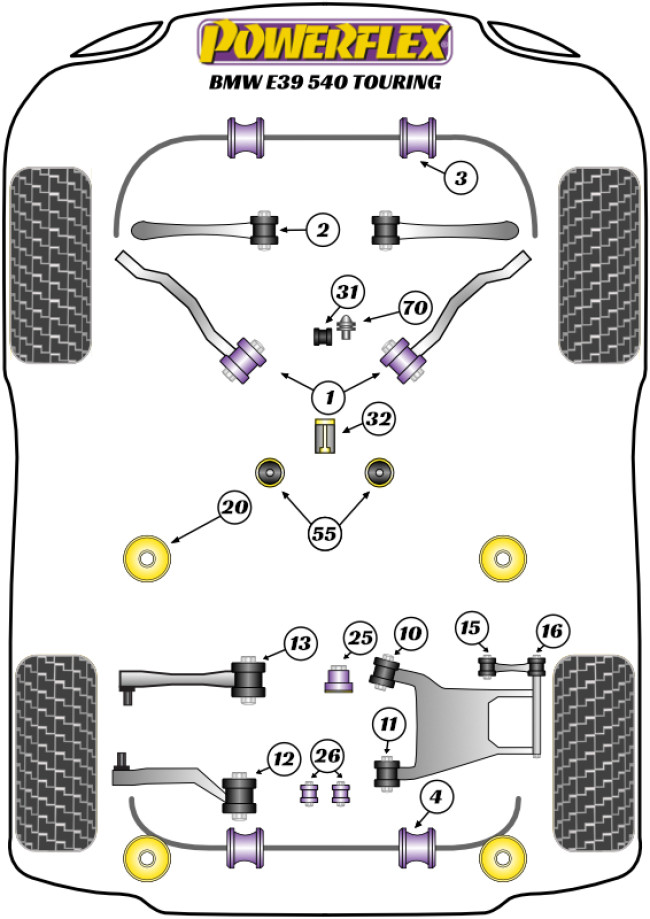

1. PFF5-501 – Front Lower Tie Bar To Chassis Bush
This bush fits 535, 540 & M5 Models, for all other petrol and diesel models use
PFF5-510.
Bush fits arms with a 66mm bore hole.
OEM Part Number: 31120006482 / 31129071085
OEM Part Number: 31129068734 / 31121141752
2. PFF5-502 – Front Inner Track Control Arm Bush
This bush fits 535, 540 & M5 Models, for all other petrol and diesel models use
PFF5-511.
OEM Part Number: Fits wishbone OE Nr 31122339998 / 31122339999
3. PFF5-503-25 – Front Anti Roll Bar Mounting Bush 25mm
OEM Part Number: 31351092502
3. PFF5-503-24 – Front Anti Roll Bar Mounting Bush 24mm
OEM Part Number: 31351093794
3. PFF5-503-225 – Front Anti Roll Bar Mounting Bush 22.5mm
OEM Part Number: 31351096102
4. PFR5-504-15 – Rear Anti Roll Bar Mounting Bush 15mm
Please check the anti-roll bar diameter before ordering.
OEM Part Number: 33551131155
OEM Part Number: 33551093795
OEM Part Number: 33551094550
4. PFR5-504-14 – Rear Anti Roll Bar Mounting Bush 14mm
Please check the anti-roll bar diameter before ordering.
OEM Part Number: 33551092525
4. PFR5-504-13 – Rear Anti Roll Bar Mounting Bush 13mm
Please check anti roll bar diameter before ordering – Some part numbers may be described as for the rear but are also for the front anti roll bar on some models. It will not fit E24 6 series models built before 05/1982.
OEM Part Number: 33551093663
10. PFR5-710-10 – Rear Lower Arm Front Bush
OEM Part Number: Arm = 33321093723 / 33 32 1 093 723 / 33321093724 / 33 32 1 093 724
OEM Part Number: Arm = 33326755471 / 33 32 6 755 471 / 33326755472 / 33 32 6 755 472
11. PFR5-711 – Rear Lower Arm Rear Bush
OEM Part Number: Arm = 33326770743 / 33 32 6 770 743 / 33326770744 / 33 32 6 770 744
OEM Part Number: Arm = 33326754557 / 33 32 6 754 557 / 33326754558 / 33 32 6 754 558
12. PFR5-712 – Rear Upper Arm Inner Bush
This part also replaces the bush in E60 arm OE numbers: 33322347991 and 33322347990.
OEM Part Number: 33322347991
OEM Part Number: 33322347990
13. PFR5-713 – Rear Toe Adjust Inner Bush
OEM Part Number: 33322348886
15. PFR5-715 – Rear Outer Integral Link Upper Bush
OEM Part Number: 33326770749
16. PFR5-716 – Rear Outer Integral Link Lower Bush
OEM Part Number: 33326770749
20. PFR5-531 – Rear Subframe Mounting Bush Insert
These inserts fit into the original bushes on the subframe to limit the movement. For complete bushes use PFR5-530
OEM Part Number: 33311094036
20. PFR5-530 – Rear Subframe Mounting Bush
These are complete replacement bushes. For inserts to fill the voiding of the original bushes, use PFR5-531.
OEM Part Number: 33311094036
25. PFR5-525 – Rear Diff Front Mounting Bush
OEM Part Number: Bush 33171090389 / 33171090099
OEM Part Number: Fits Diff 33101428503 / 33101214481 / 33107503465 / 33107501289 / 33101428465
OEM Part Number: Fits Diff 33101428501 / 33101428475 / 33107529494 / 33101428473 / 33101214952
25. PFR5-524 – Rear Diff Front Mounting Bush
This part fits against a flat casting face of the diff. If the casing has a spigot use PFR5-525. This part is fitted to the M5 as well as other models. Check OE part number.
OEM Part Number: Bush 33171090389 / 33171090099
OEM Part Number: Fits Diff 33107504997 / 33101428736 / 33102229566
OEM Part Number: Fits Diff 33102228916 / 33101428576 / 33101428521 / 33101214225 / 33101428572
26. PFR5-526 – Rear Diff Rear Mounting Bush
OEM Part Number: 33171093008
31. PFF5-4631 – Gear Shift Arm Front Bush Oval
Depending on vehicle application, this part can be 1 or 2 per car. Size 22mm W x 17mm H x 26mm L.
OEM Part Number: 25117507695
32. PFF5-4632 – Shifter Arm Rear Bush
Replaces the soft OE rubber bush that sits at the end of the gear shifter arm on manual transmission equipped vehicles, a part often overlooked when upgrading transmission components.
OEM Part Number: 25111222015
OEM Part Number: 25111221736
55. PFF5-4655P – Transmission Mounting Bush (Track)
Designed with trackdays in mind to replace the tear-prone soft rubber factory transmission mounts, a common cause of knocking, mis-shifting and over-revving. Fits RWD vehicles only.
OEM Part Number: 22316799331 / 22322282340
OEM Part Number: 22316799330 / 22316796617 / 22316796619
OEM Part Number: 22316875904 / 22312284819
55. PFF5-4655 – Transmission Mounting Bush (Fast Road)
Designed with fast road driving in mind to replace the tear-prone soft rubber factory transmission mounts, a common cause of knocking, mis-shifting and over-revving. Fits RWD vehicles only.
OEM Part Number: 22316799331 / 22322282340
OEM Part Number: 22316799330 / 22316796617 / 22316796619
OEM Part Number: 22316875904 / 22312284819
70. PFF5-470 – Clutch Fork Pivot Pin
The factory plastic clutch fork pivot pins (and even some aftermarket bronze/brass ones) are known to squeak, wear excessively and even break over time and when used with high-pressure performance clutches. Our CNC-machined 303-grade stainless steel clutch fork pivot pins solves this issue, as a fit and forget part with our lifetime warranty. Fits manual transmissions only.
OEM Part Number: 21511223328 / 21 51 1 223 328
PF5-4660 – Jack Pad Adaptor
PF5-4660 is a polyurethane jack pad to fit into the plastic lifting points found on most modern BMW and related vehicles and is designed to help lift stability and location, whilst protecting the underside of your vehicle.
OEM Part Number: 51717039760 / 51717123311 / 51718268885
OEM Part Number: 51717169981 / 51717065919 / 51717001650
OEM Part Number: 51717189259 / 51717164761
