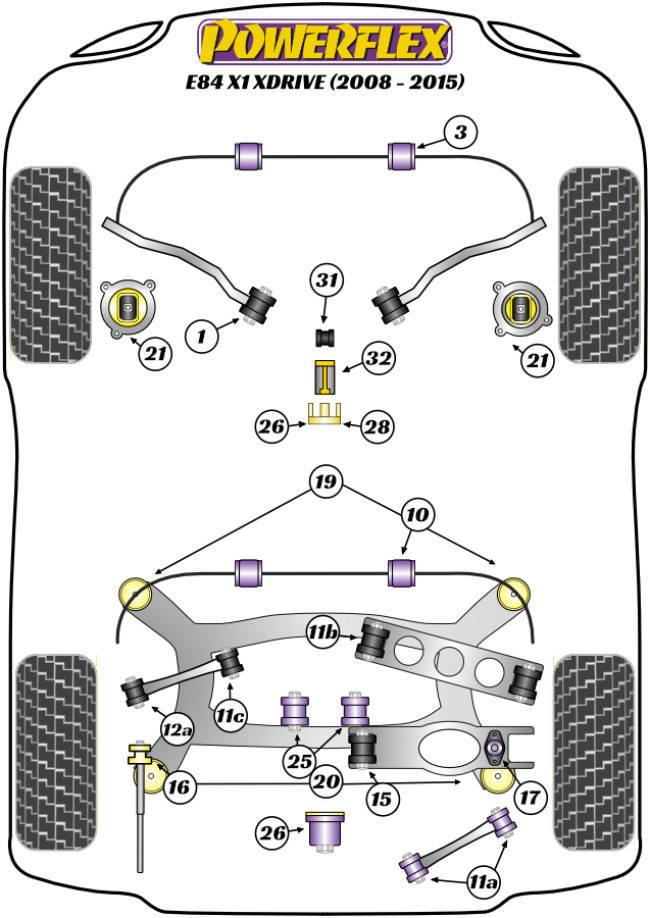

1. PFF5-5701 – Front Control Arm to Chassis Bush
OEM Part Number: 31126768818
3. PFF5-5703-26.5 – Front Anti Roll Bar Mounting Bush 26.5mm
Only fits vehicles from 05/2010 on with 31306787017 brackets fitted
OEM Part Number: 31306787017
10. PFR5-4609-15 – Rear Anti Roll Bar Bush 15mm
Please check anti roll bar diameter before ordering
OEM Part Number: 33556761360
10. PFR5-4609-14 – Rear Anti Roll Bar Bush 14mm
Please check anti roll bar diameter before ordering
OEM Part Number: 33556761568
10. PFR5-4609-13 – Rear Anti Roll Bar Bush 13mm
Please check anti roll bar diameter before ordering
OEM Part Number: 33556761002
10. PFR5-4609-12 – Rear Anti Roll Bar Bush 12mm
Please check anti roll bar diameter before ordering
OEM Part Number: Bush = 33556761001
OEM Part Number: Bar = 33556760995
OEM Part Number: Bar = 33556764424
10. PFR5-4609-11 – Rear Anti Roll Bar Bush 11mm
Please check anti roll bar diameter before ordering
OEM Part Number: Bush = 33536765584
15. PFR5-415 – Rear Lower Lateral Arm To Chassis Bush
OEM Part Number: 33326770829
16. PFR5-416-12 – Rear Upper Shock Mounting Bush 12mm
OEM Part Number: 33506767010 / 33506771737 / 33506771738
16. PFR5-416 – Rear Upper Shock Mounting Bush 10mm
OEM Part Number: 33506767010 / 33506771737 / 33506771738
17. PFR5-417 – Rear Lower Shock Mounting Bush & Bracket
PFR5-417 is manufactured from our Purple 80ShA material to provide more control and longevity to the rear damper/swing arm assembly.
OEM Part Number: Mount = 33526768544 / 33 52 6 768 544
OEM Part Number: Arm = 33326772899 / 33 32 6 772 899
19. PFR5-419 – Rear Subframe Front Mounting Insert
PFR5-419 is an Insert to be used with the OE rubber bush. For a full replacement bush use PFR5-420
OEM Part Number: 33316758259
19. PFR5-1220 – Rear Subframe Front Mounting Bush Anti-Squat (Fast Road)
PFR5-1220 is a full replacement bush for non-M models to raise the front of the rear subframe by 9mm, providing the same anti-squat characteristic during acceleration as featured on M model vehicles and is made using our Purple 80A durometer material, recommended for heavily tuned road or occasional track cars. For standard subframe alignment, without anti-squat, please use PFR5-420.
OEM Part Number: 33312283382
19. PFR5-420 – Rear Subframe Front Mounting Bush (Road)
PFR5-420 is a full replacement bush and replicates the geometry of the original bush. PFF5-420 is made using our Yellow 70A material and recommended for standard or mildly tuned road cars. For inserts that fit into the OE bush use PFR5-419 for 33316758259 or PFR5-1920 for 33316792509.
OEM Part Number: 33316758259
OEM Part Number: 33316792509
19. PFR5-420P – Rear Subframe Front Mounting Bush (Fast Road)
PFR5-420P is a full replacement bush made in our Purple 80A material and replicates the geometry of the original bush. This part has been introduced to accompany PFR5-422P Rear Subframe Rear Mounting Bush which is a full replacement bush recommended for tuned road or occasional track use where a higher torque output requires greater rear-end stability.
OEM Part Number: 33316758259
OEM Part Number: 33316792509
20. PFR5-421 – Rear Subframe Rear Mounting Insert
PFR5-421 is an Insert to be used with the OE rubber bush. For a full replacement bush use PFR5-422
OEM Part Number: 33316758260
20. PFR5-422 – Rear Subframe Rear Mounting Bush (Road)
PFR5-422 is a full replacement bush and is made using our Yellow 70A durometer material, recommended for standard or mildly tuned road cars. For inserts that fit into the OE bush use PFR5-421 for 33316758260 or PFR5-1921 for 33316792510.
OEM Part Number: 33316758260 / 33316768645
OEM Part Number: 33316792510 / 33312283383
20. PFR5-422P – Rear Subframe Rear Mounting Bush (Fast Road)
PFR5-422P is a full replacement bush and is made using our Purple 80A durometer material, recommended for more heavily tuned road or occasional track cars. For inserts that fit into the OE bush use PFR5-421 for 33316758260 or PFR5-1921 for 33316792510.
OEM Part Number: 33316758260 / 33316768645
OEM Part Number: 33316792510 / 33312283383
21. PFF5-4020 – Engine Mount Insert Kit
PFF5-4020 and PFF5-4021 Engine Mount Insert Kits are an intermediate alternative to the BMW aluminium inserts and much stiffer full replacement engine mounts available on the aftermarket. Made in our Yellow 70A durometer material, they are designed to fit the voiding of the OE mounts snuggly to restrict engine movement with a minimal increase in NVH, perfect for those with tuned road cars. Their design and flexibility also mean they can be fitted to the vehicle without removing the engine mounts themselves. Reducing engine/transmission movement by way of upgraded inserts has the following benefits: – Sharper throttle response – Improved gear shifting – More direct power transfer – More balanced on/off throttle handling – Prolonged life of the OE mounts. A small increase in NVH, usually at idle, should be expected when stiffening the connecting mount between the engine and chassis. The harder the material used, the greater the NVH transmitted. Fits N52, N54, N55 and B58 engines only.
OEM Part Number: 22116787659 (Left) / 22116855460 (Right)
OEM Part Number: 22116760330 / 22116773744
25. PFR5-425 – Rear Diff Front Mounting Bush
OEM Part Number: 33176760287
OEM Part Number: 33316792513
26. PFR5-426 – Rear Diff Rear Mounting Bush
OEM Part Number: 33316769376 / 33176770866
OEM Part Number: 33316792514 / 33316880637
27. PFF5-1526P – Transfer Case Bush Insert (Tuned/Track)
PFF5-1526P Transfer Case Bush Insert (Tuned/Track) is made from our signature Purple 80A material to restrict movement further for Tuned Petrol/Tuned Diesel vehicles and occasional track use. An increase in NVH, usually at idle, should be expected when stiffening the mount between the transmission and chassis. The harder the material, the greater the NVH transmitted.
OEM Part Number: Bush = 22313400320 / 22313422956
27. PFF5-1526 – Transfer Case Bush Insert (Petrol)
PFF5-1526 Transfer Case Bush Insert (Standard) is made from our Yellow 70A durometer material, providing an excellent balance of strength and compliance for improved performance on standard Petrol/Diesel vehicles whilst limiting NVH transmission into the cabin. An increase in NVH, usually at idle, should be expected when stiffening the mount between the transmission and chassis. The harder the material, the greater the NVH transmitted.
OEM Part Number: Bush = 22313400320 / 22313422956
27. PFF5-1526R – Transfer Case Bush Insert (Diesel)
PFF5-1526R Transfer Case Bush Insert (Diesel) is made from our Red 65A durometer material, providing an excellent balance of strength and compliance for improved performance on standard Diesel vehicles whilst limiting NVH transmission into the cabin. An increase in NVH, usually at idle, should be expected when stiffening the mount between the transmission and chassis. The harder the material, the greater the NVH transmitted.
OEM Part Number: Bush = 22313400320 / 22313422956
28. PFF5-4628P – Transfer Case Bush Insert (Tuned/Track)
PFF5-4628P Transmission Case Bush Insert (Tuned/Track) is made from our signature Purple 80A material to restrict movement further for Tuned Petrol/Tuned Diesel vehicles and occasional track use. An increase in NVH, usually at idle, should be expected when stiffening the mount between the transmission and chassis. The harder the material, the greater the NVH transmitted.
OEM Part Number: 22316773125
28. PFF5-4628 – Transfer Case Bush Insert (Standard)
PFF5-4628 Transmission Case Bush Insert (Standard) is made from our Yellow 70A durometer material, providing an excellent balance of strength and compliance for improved performance on standard Petrol/Diesel vehicles whilst limiting NVH transmission into the cabin. An increase in NVH, usually at idle, should be expected when stiffening the mount between the transmission and chassis. The harder the material, the greater the NVH transmitted.
OEM Part Number: 22316773125
31. PFF5-4634 – Shift Arm Front Bush Ultra-Oval
PFF5-4634 Shift Arm Front Bush Ultra-Oval replaces the soft OE rubber bush fitted at the end of the gear shifter arm, a part often overlooked when upgrading transmission components. Made in our Black 95A durometer material, it eliminates play in the shifter assembly to restore precision and provide a more direct feel to enjoy fast and smooth shifting through the gears. Size: 26mm W x 17.5mm H x 21mm L.
OEM Part Number: Bush = 25117528407
OEM Part Number: Arm = 25117547887
31. PFF5-4631 – Gear Shift Arm Front Bush Oval
Depending on vehicle application, this part can be 1 or 2 per car. Size 22mm W x 17mm H x 26mm L.
OEM Part Number: 25117507695
32. PFF5-4632 – Shifter Arm Rear Bush
Replaces the soft OE rubber bush that sits at the end of the gear shifter arm on manual transmission equipped vehicles, a part often overlooked when upgrading transmission components.
OEM Part Number: 25111222015
OEM Part Number: 25111221736
70. PFF5-470 – Clutch Fork Pivot Pin
The factory plastic clutch fork pivot pins (and even some aftermarket bronze/brass ones) are known to squeak, wear excessively and even break over time and when used with high-pressure performance clutches. Our CNC-machined 303-grade stainless steel clutch fork pivot pins solves this issue, as a fit and forget part with our lifetime warranty. Fits manual transmissions only.
OEM Part Number: 21511223328 / 21 51 1 223 328
11a. PFR5-411 – Rear Toe Adjust Arm Inner & Outer Bush
OEM Part Number: 33326763092
11b. PFR5-411 – Rear Trailing Arm Inner & Outer Bush
OEM Part Number: 33326763092
11c. PFR5-411 – Rear Upper Control Arm To Chassis Bush
OEM Part Number: 33322406288 / 33 32 2 406 288
OEM Part Number: 33322406289 / 33 32 2 406 289
OEM Part Number: 33322409890 / 33 32 2 409 890
12a. PFR5-412 – Rear Upper Control Arm To Hub Bush
OEM Part Number: 33322406288 / 33 32 2 406 288
OEM Part Number: 33322406289 / 33 32 2 406 289
OEM Part Number: 33322409890 / 33 32 2 409 890
EXH032 – Universal Exhaust Mount
OEM Part Number: 18 30 7 616 850 / 18307616850
PF5-4660 – Jack Pad Adaptor
PF5-4660 is a polyurethane jack pad to fit into the plastic lifting points found on most modern BMW and related vehicles and is designed to help lift stability and location, whilst protecting the underside of your vehicle.
OEM Part Number: 51717039760 / 51717123311 / 51718268885
OEM Part Number: 51717169981 / 51717065919 / 51717001650
OEM Part Number: 51717189259 / 51717164761
