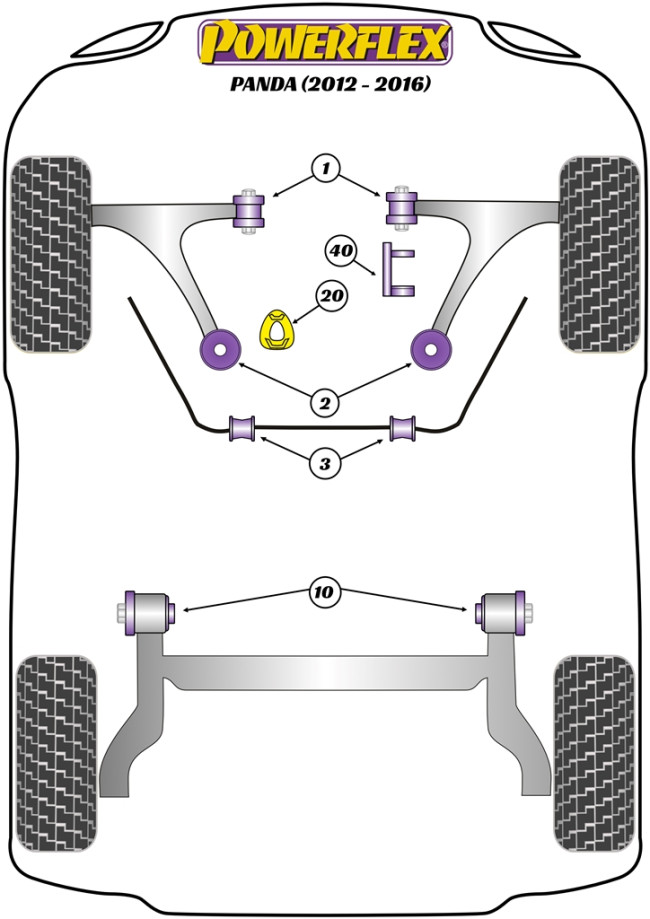

1. PFF16-501 – Front Arm Front Bush
Does not fit arms K04670544AE, K04670545AE, K04877742AD and K04877743AD as fitted to US models.
OEM Part Number: 51857021 / 51857022 / 51857023 / 51857024
OEM Part Number: 50709579 / 50709580 / 51860383 / 51860385
OEM Part Number: 52013961 / 52045068 / 52045069 / 52045072 / 52045075
2. PFF16-802 – Front Wishbone Rear Bush
OEM Part Number: (left) 51928536, (right) 51928527
OEM Part Number: (left) 51957401, (right) 51957400
OEM Part Number: (left) 52013960, (right) 52013959
3. PFF16-803-21 – Front Anti Roll Bar Bush 21mm
Please check anti roll bar diameter before ordering.
OEM Part Number: 51931814
OEM Part Number: 51945640
OEM Part Number: 51904474
10. PFR16-810 – Rear Beam Bush
OEM Part Number: 52043402 / 52043402
OEM Part Number: K05154983AA
OEM Part Number: 52043404
20. PFF16-530P – Lower Torque Mount Fast Road/Track
Supplied as a Polyurethane bush and CNC machined bracket combination, the Purple 80A materials in PFF16-530P are better suited to those vehicles above stage 1 being used for fast road/track use. A slight increase in NVH should be expected but improved control of wheel spin/hop is achieved. For an insert only use PFF16-520.
OEM Part Number: 51732681
OEM Part Number: 0046800429
OEM Part Number: 0051732681
20. PFF16-520 – Lower Engine Mount Insert
Fits 500 Non-Abarth 1.2 & 1.4 lower engine mounts. This part fits into voids in original bush. Please check void pattern is the same as on your vehicle. For a complete mount for 500 models use PFF16-530.
Fits Grande Punto, Punto Evo and Mk3 Punto 1.2, 1.4 8v and 1.4 16v non-turbo engines.
Fits MiTo with 1.4 8v or 1.4 16v non-turbo engines.
OEM Part Number: 51732681: 55700441
OEM Part Number: 0046800429: 0051732681
40. PFF16-540 – Upper Engine Mount Insert
OEM Part Number: 51853818 / 51820350 / 51891360 / 51792716 / 51730868 / 51739520 / 51854035
OEM Part Number: 46800409 / 51728282 / 51867664 / 51867665 / 51749797 / 51910242
OEM Part Number: 51929082 / 51932522 / 1583044 / 1583053 / 9S51-6F012-AA / 9S51-6F012-BA
