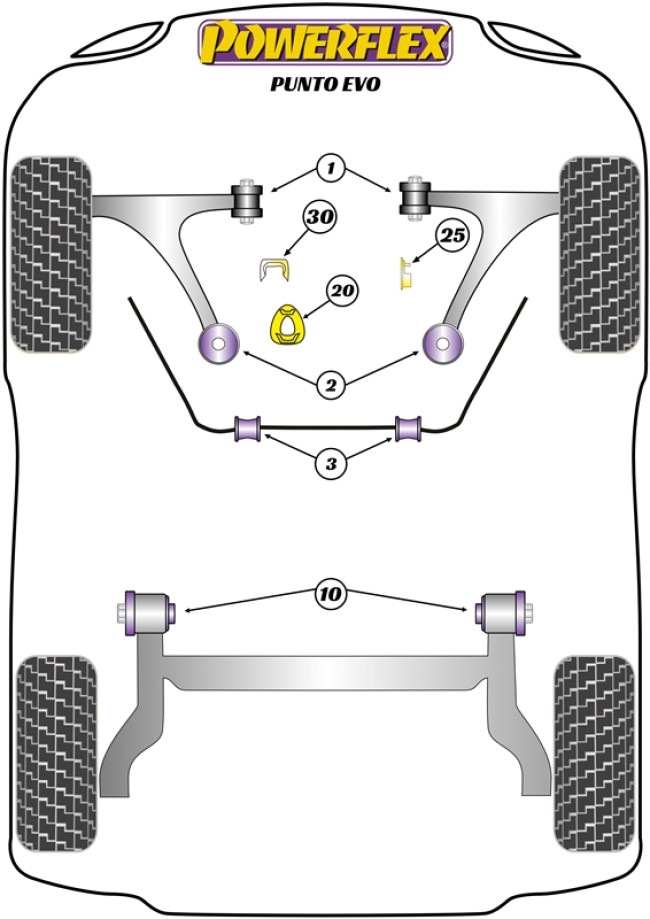

1. PFF80-1101 – Front Wishbone Front Bush
OEM Part Number: 13260666 / 352308
OEM Part Number: C14771 / D14771
2. PFF80-1102G – Front Wishbone Rear Bush Caster Adjustable
PFF80-1102G Front Wishbone Rear Bush Caster Adjustable has been designed around our unique on-car adjustable Nylon/Polyurethane Ball-Joint combination for more direct steering input and improved cornering and braking. The offset bore allows for +/- 0.5-1.0° of caster adjustment with the supplied spanner, to assist in the fine-tuning of the side-to-side caster settings. Vertical stiffness is increased considerably over standard rubber. Suitable for Road and Black Series applications.
OEM Part Number: Fiat/Alfa Wishbone: 51895366 / 51895367 / 51783056 / 51783057 / 51892272 / 51892273
OEM Part Number: Vauxhall-Opel Wishbone: 352864 / 13167940
2. PFF80-1702 – Front Wishbone Rear Bush
Made from our Purple 80ShA Polyurethane material, these bushes are supplied with a CNC-machined outer shell, stainless-steel sleeve and supporting washers. Its design features a tapered bore, allowing for the required articulation while limiting deflection under acceleration and braking.
OEM Part Number: Fiat/Alfa Wishbone: 51895366 / 51895367 / 51783056 / 51783057 / 51892272 / 51892273
OEM Part Number: Vauxhall-Opel Wishbone: 352864 / 13167940
3. PFF80-1103-21 – Front Anti Roll Bar Bush 21mm
Please check anti roll bar diameter before ordering.
3. PFF80-1103-20 – Front Anti Roll Bar Bush 20mm
Please check anti roll bar diameter before ordering.
3. PFF80-1103-19 – Front Anti Roll Bar Bush 19mm
Please check anti roll bar diameter before ordering.
OEM Part Number: 0350181S
OEM Part Number: 13343139
OEM Part Number: 207668
10. PFR80-1110 – Rear Beam Mounting Bush
OEM Part Number: 13251590
OEM Part Number: 0402538 / 5131.G8
OEM Part Number: 51783623 / 51804552
20. PFF80-1120 – Lower Rear Engine Mount Insert
Not recommended for 3cyl or diesel engined vehicles due to the potential for increased vibration.
OEM Part Number: 50510781 / 50515486
OEM Part Number: 5684 206
OEM Part Number: 55703436
20. PFF1-1120 – Lower Rear Engine Mount Insert
For C510.5 and C514 gearboxes only. For models with TCT gearbox, use PFF80-1120. This part is inserted into the original bush, to increase stiffness. If fitting this to the Diesel or TwinAir engine vehicles, an increase in noise and vibration is to be expected. This should be considered as a performance upgrade.
OEM Part Number: 55702836
OEM Part Number: 51794078
OEM Part Number: 51891460
20. PFF16-520 – Lower Engine Mount Insert
Fits 500 Non-Abarth 1.2 & 1.4 lower engine mounts. This part fits into voids in original bush. Please check void pattern is the same as on your vehicle. For a complete mount for 500 models use PFF16-530.
Fits Grande Punto, Punto Evo and Mk3 Punto 1.2, 1.4 8v and 1.4 16v non-turbo engines.
Fits MiTo with 1.4 8v or 1.4 16v non-turbo engines.
OEM Part Number: 51732681: 55700441
OEM Part Number: 0046800429: 0051732681
25. PFF1-1125R – Upper Engine Mount Insert (Diesel)
This insert is made in our softest Red 65A durometer material, specifically for Diesel models, helping to limit NVH transmission. Designed to fill the voiding in the OE rubber mount, it smooths out gear changes and throttle application by stiffening and supporting the often perished rubber, a common failure on tuned vehicles. This supports a more precise and settled transmission response during acceleration and deceleration. This new part combines perfectly with our other Upper Gearbox Mounts and Lower Gearbox Mounts for greater engine stability. A small increase in NVH, usually at idle, should be expected when stiffening the connecting mount between the engine/transmission and chassis. The harder the material used, the greater the NVH transmitted.
OEM Part Number: 51813198 / 50515482 / 50508653 / 55700654 / 51815197 / 51980334
OEM Part Number: 13130741 / 13130739 / 13427217 / 9552231 / 95510419
OEM Part Number: 13130748 / 13234017 / 13130741 / 13267197 / 13427216
25. PFF1-1125 – Upper Engine Mount Insert
This insert is made in our Yellow 70A durometer material for increased transmission mount longevity and performance on Petrol or tuned Diesel engines. Designed to fill the voiding in the OE rubber mount, it smooths out gear changes and throttle application by stiffening and supporting the often perished rubber, a common failure on tuned vehicles. This supports a more precise and settled transmission response during acceleration and deceleration. This new part combines perfectly with our other Upper Gearbox Mounts and Lower Gearbox Mounts for greater engine stability. A small increase in NVH, usually at idle, should be expected when stiffening the connecting mount between the engine/transmission and chassis. The harder the material used, the greater the NVH transmitted.
OEM Part Number: 51813198 / 50515482 / 50508653 / 55700654 / 51815197 / 51980334
OEM Part Number: 13130741 / 13130739 / 13427217 / 9552231 / 95510419
OEM Part Number: 13130748 / 13234017 / 13130741 / 13267197 / 13427216
30. PFF80-1130 – Upper Gearbox Mount Insert (Petrol/Tuned Diesel)
Designed to fill the voiding in the OE rubber mount, it smooths out gear changes by stiffening and supporting the often perished rubber, which is common for failure on tuned vehicles. This will provide a more precise and settled transmission response during acceleration and deceleration. Fits all Vauxhall and Opel Corsa D, E and Adam Models, all Abarth Punto models, 1.6D and 1.9D Punto models, and 1.6D, 155hp 170hp, and TCT transmission MiTo models. For unmodified diesel cars, 80-1130R is recommended for reduced NVH transmission.
OEM Part Number: 55700655 / 50515483
OEM Part Number: 13130742 / 13130745 / 13190881
OEM Part Number: 13371838 / 13427222 / 13427220
30. PFF1-1130 – Upper Gearbox Mount Insert (Petrol)
PFF1-1130 Lower Engine Mount Insert is made in our Yellow 70A durometer material for increased transmission mount longevity and performance. Designed to fill the voiding in the OE rubber mount, it smooths out gear changes by stiffening and supporting the often perished rubber bush, which is common for failure on tuned vehicles. This will provide a more precise and settled transmission response during acceleration and deceleration. A small increase in NVH, usually at idle, should be expected when stiffening the connecting mount between the engine/transmission and chassis. The harder the material used, the greater the NVH transmitted.
OEM Part Number: 50518779 / 55702833 / 95510399
OEM Part Number: 55700434 / 51838875 / 51761609
OEM Part Number: 1807GR / 1807GL / 1807KF
30. PFF80-1130R – Upper Gearbox Mount Insert (Diesel)
Designed to fill the voiding in the OE rubber mount, it smooths out gear changes by stiffening and supporting the often perished rubber, which is common for failure on tuned vehicles. This will provide a more precise and settled transmission response during acceleration and deceleration. Fits all Vauxhall and Opel Corsa D, E and Adam Models, all Abarth Punto models, 1.6D and 1.9D Punto models, and 1.6D, 155hp 170hp, and TCT transmission MiTo models. For unmodified diesel cars, 80-1130R is recommended for reduced NVH transmission.
OEM Part Number: 55700655 / 50515483
OEM Part Number: 13130742 / 13130745 / 13190881
OEM Part Number: 13371838 / 13427222 / 13427220
30. PFF1-1130R – Upper Gearbox Mount Insert (Diesel)
PFF1-1130R Lower Engine Mount Insert is made in our softest Red 65A durometer material, specifically for Diesel models, helping to limit NVH transmission. Designed to fill the voiding in the OE rubber mount, it smooths out gear changes by stiffening and supporting the often perished rubber bush, which is common for failure on tuned vehicles. This will provide a more precise and settled transmission response during acceleration and deceleration. A small increase in NVH, usually at idle, should be expected when stiffening the connecting mount between the engine/transmission and chassis. The harder the material used, the greater the NVH transmitted.
OEM Part Number: 50518779 / 55702833 / 95510399
OEM Part Number: 55700434 / 51838875 / 51761609
OEM Part Number: 1807GR / 1807GL / 1807KF
EXH039 – Exhaust Mount
OEM Part Number: 55703877 / 5852693
OEM Part Number: 51799761 / 55702862 / 55702863
EXH038 – Exhaust Mount
OEM Part Number: 55702861
OEM Part Number: 50515701
OEM Part Number: 1755S7
