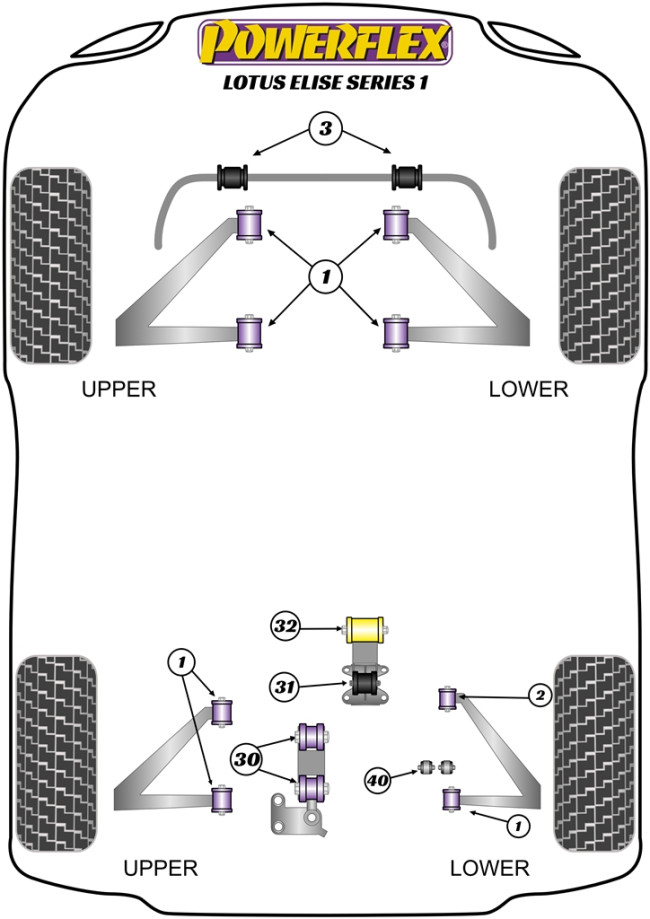

1. PF34-201 – Front and Rear Wishbone Bush
This bush replaces all ’short’ upper and lower wishbone bushes except the longer rear lower wishbone front bush which uses PF34-202.
OEM Part Number: Lotus = A116C0067F / A111D0061F
OEM Part Number: Vauxhall = 9198326 / 9198327
2. PF34-202 – Rear Lower Wishbone Front Bush
Replaces the longer front bush on the rear lower wishbone.
OEM Part Number: Lotus = A116C0068F / A116C0036F
OEM Part Number: Vauxhall = 9198328
3. PFF34-203-25.4 – Front Anti Roll Bar Bush 25.4mm
Fits uprated 1inch anti roll bars using the D shaped bracket. Fits Elise series 1 (from chassis number W3039) and series 2, Exige 2 & V6, 211 and the Vauxhall VX220
OEM Part Number: A111C0094F
3. PFF34-203-22.2 – Front Anti Roll Bar Bush 22.2mm
Fits uprated 7/8inch anti roll bars using the D shaped bracket. Fits Elise series 1 (from chassis number W3039) and series 2, Exige 2 & V6, 211 and the Vauxhall VX220
3. PFF34-203-19 – Front Anti Roll Bar Bush 19mm
Fits standard 3/4inch anti roll bars using the D shaped bracket. Fits Elise series 1 (from chassis number W3039) and series 2, Exige 2 & V6, 211 and the Vauxhall VX220
OEM Part Number: A111C0094F / 9197781
30. PFR34-230 – Upper Engine Mount Steady Bush
This part fits both positions of the upper engine mount, therefore 2 are required per car.
OEM Part Number: Bush = A111E6016F / KKF000040
OEM Part Number: Bracket = A111E6027F / D111E0004AF / KKQ100801
31. PFR34-231 – Lower Engine Sump Mount Bush
OEM Part Number: A111E6133S
OEM Part Number: KKG100371
32. PFR34-232 – Lower Engine Mount Bush
Fits K-Series engine only.
OEM Part Number: A111E6029F
40. PFR34-240 – Gear Cable Rear Bush Kit
Fit K-Series Engine and Gearbox Only. Kit of 2 bushes.
