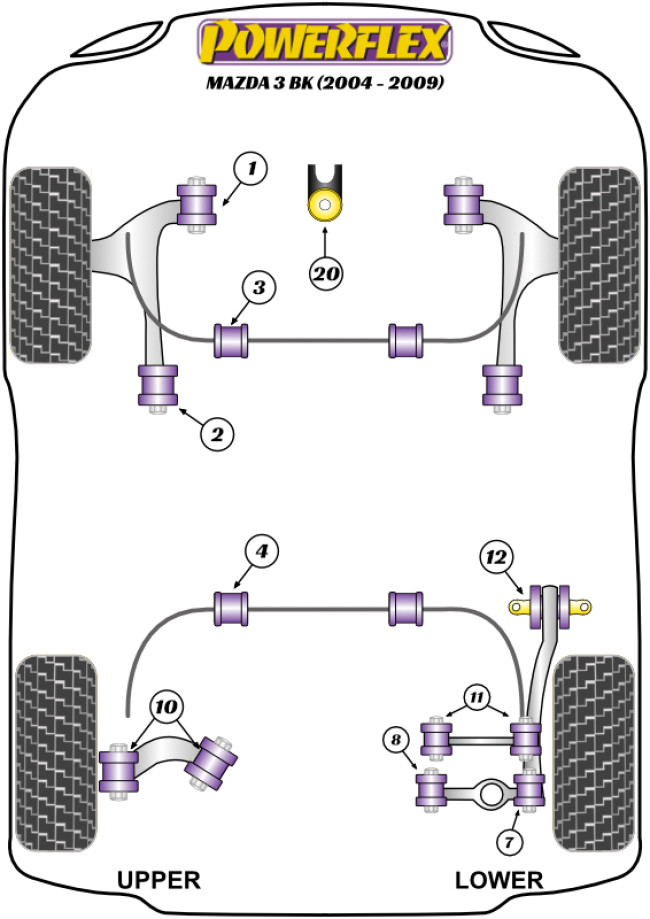

1. PFF19-8011G – Front Wishbone Front Bush Camber Adjustable 14mm Bolt
15% stiffer than the original bush and provides +/- 0.5 degrees of on-car camber adjustment. Suitable for 14mm bolt.
OEM Part Number: 1570284 / 1570285 / 1570287
OEM Part Number: 1570312 / 1570677 / 1570678
OEM Part Number: 1585054 / 1585059
1. PFF19-8011 – Front Wishbone Front Bush 14mm bolt
PFF19-8011BLK is a replacement bush that is 15% stiffer than the original bush. For a camber adjustable version of this bush please use PFF19-8011GBLK. Suitable for 14mm bolt, if your vehicle uses a 12mm bolt please order PFF19-801.
OEM Part Number: 1570284 / 1570285 / 1570287
OEM Part Number: 1570312 / 1570677 / 1570678
OEM Part Number: 1585054 / 1585059
1. PFF19-801 – Front Wishbone Front Bush 12mm bolt
Fits bushes with a 12mm bore sleeve. For bushes with a 14mm bore sleeve, please use PFF19-8011 as fitted to the Focus RS/ST etc.
OEM Part Number: 1570284 / 1570285 / 1570287
OEM Part Number: 1570312 / 1570677 / 1570678
OEM Part Number: 1585054 / 1585059
2. PFF19-1002G – Front Wishbone Rear Bush Anti-Lift & Caster Offset
PFF19-1002G adds 1 degree of caster offset for a greater tyre contact area, which, in turn, provides greater feedback information to the driver, improves traction and offers greater stability. The increased caster angle produces more weight and detail to the steering which is vital to driver confidence, allowing your Focus to corner with more urgency, significantly improved grip and reduced understeer.
OEM Part Number: 1883046 / 1866070 / 1866072
OEM Part Number: B32H34250ES4
OEM Part Number: 31277464SK3
2. PFF19-1202 – Front Lower Wishbone Rear Bush
PFF19-1202 will not fit models using aluminium front wishbones.
OEM Part Number: 1883046 / 1866070 / 1866072
OEM Part Number: B32H34250ES4 / 2172992 / 2176249
OEM Part Number: 31277464SK3 / 2173539 / 2173541 / 31277620 / 31277621
3. PFF19-1203-22 – Front Anti Roll Bar To Chassis Bush 22mm
OEM Part Number: 1305960 estate 3M515484CA
OEM Part Number: 1348231 Saloon 3N615484AA
OEM Part Number: 1587197 RS 3M515484MA
3. PFF36-203-25.5 – Front Anti Roll Bar Mount 25.5mm, MPS Only
Fits MPS Models
4. PFR19-1204-18 – Rear Anti Roll Bar To Chassis Bush 18mm
OEM Part Number: 3M51-4A037-DB
4. PFR36-204-25 – Rear Anti Roll Bar Bush 25mm, MPS Only
Fits MPS Models.
OEM Part Number: C243-28-156B
OEM Part Number: C243-28-156D
OEM Part Number: C243-28-156C
7. PFR19-807 – Rear Lower Track Control Arm Outer Bush
Fits the following Rear Track Control Arms – Finis Code 1061666, 1064128,1150353, 1357319, 1548460, 1909108, 1743600, 1894048, 1894049, 1931272, 1931562, 1948762, 1949978 – Part number 98AG-5K652-BG, 98AG-5K652-AK, 1M5O-5K652-AA, 4M51-5K652-BD, 4M51-5K652-CB, 4M51-5K652-AF, BV61-5K652-GA, BV61-5K652-CH, BV61-5K652-AH, F1F1-5K652-AA, BV61-5K652-FF, BV61-5K652-EH, F1F1-5K652-CA, 1939321
8. PFR19-808 – Rear Lower Track Control Arm Inner Bush
Fits the following Rear Track Control Arms – Finis Code 1061666, 1064128,1150353, 1357319, 1548460, 1909108, 1743600, 1894048, 1894049, 1931272, 1931562, 1948762, 1949978 – Part number 98AG-5K652-BG, 98AG-5K652-AK, 1M5O-5K652-AA, 4M51-5K652-BD, 4M51-5K652-CB, 4M51-5K652-AF, BV61-5K652-GA, BV61-5K652-CH, BV61-5K652-AH, F1F1-5K652-AA, BV61-5K652-FF, BV61-5K652-EH, F1F1-5K652-CA, 1939321
10. PFR19-810G – Rear Upper Control Arm Camber Adjustable Bush
PFF19-810G is an adjustable version of our popular PFR19-810 bush and is designed to provide +/- 1 degree of on-car camber adjustment.
OEM Part Number: 1061659 / 1136072 / 1329730 /1448127 / 1517403 / 1M515500AC / 1755222
OEM Part Number: 1M515500BA / 31201356 / 31212503 / 31277305 / 6M515500BA / 8671921 / 8M515500AA
OEM Part Number: 8M515500AB / 98AG5500AG / 98AG5500BF / 98AGG5K653DA / BBM228C10 / BP4K28C10B
10. PFR19-810 – Rear Upper Control Arm Bush
OEM Part Number: 1061659 / 1136072 / 1329730 /1448127 / 1517403 / 1M515500AC / 1755222
OEM Part Number: 1M515500BA / 31201356 / 31212503 / 31277305 / 6M515500BA / 8671921 / 8M515500AA
OEM Part Number: 8M515500AB / 98AG5500AG / 98AG5500BF / 98AGG5K653DA / BBM228C10 / BP4K28C10B
11. PFR19-811 – Rear Lower Control Arm Bush
OEM Part Number: AV615K743BA / AV615K743AB
OEM Part Number: 1061668 / 98AG5K743AF
OEM Part Number: 1703145 / 1753556
12. PFR19-812 – Rear Trailing Arm Blade Bush
PFR19-812 provides stability to the rear trailing arm whilst allowing the knurled pattern bush to freely rotate in the supplied outer shell.
OEM Part Number: Ford: 1061670 / 1304124 / 1692849
OEM Part Number: Mazda: C2Y6 28 46X
OEM Part Number: Volvo: 30 666 821
20. PFF19-1822P – Lower Torque Mount Bracket & Bush, Fast Road/Track
Combining a new CNC machined aluminium lower torque mount with various durometer options to suit differing states of tune, this is a great way to reduce the amount of engine movement during hard acceleration and gear changing. It’s also super easy to replace – just two bolts and it’s out with the old, in with the new and no pressing out of any rubber! PFF19-1822P Lower Engine Mount Bracket & Bushes (Purple 80A) is 100% stiffer than OE and recommended for higher powered cars used on the road/track.
OEM Part Number: AV616P082AC
OEM Part Number: 5165555 / 9487349
OEM Part Number: 1224049 / 1751001
20. PFF19-1822 – Lower Torque Mount Bracket & Bush, Fast Road
Combining a new CNC machined aluminium lower torque mount with various durometer options to suit differing states of tune, this is a great way to reduce the amount of engine movement during hard acceleration and gear changing. It’s also super easy to replace – just two bolts and it’s out with the old, in with the new and no pressing out of any rubber! PFF19-1822 Lower Engine Mount Bracket & Bushes (Yellow 70A) is 50% stiffer than the OE mount and recommended for fast road use for standard or mildly tuned cars.
OEM Part Number: AV616P082AC
OEM Part Number: 5165555 / 9487349
OEM Part Number: 1224049 / 1751001
PF19-860 – Jack Pad Adaptor
PF19-860 is a polyurethane jack pad to fit around and protect the sill, designed to help lift stability and location, whilst protecting the underside of your vehicle.
EXH013 – Exhaust Mount
This product may overheat if used too close to the catalyst. Please order the required amount for your vehicle, as some models will require more than others.
OEM Part Number: 1061967 / 1061967 / 1223916 / 1223917
OEM Part Number: LF07-40-061 / LF07-40-061B
OEM Part Number: 30647631 / 30647635
