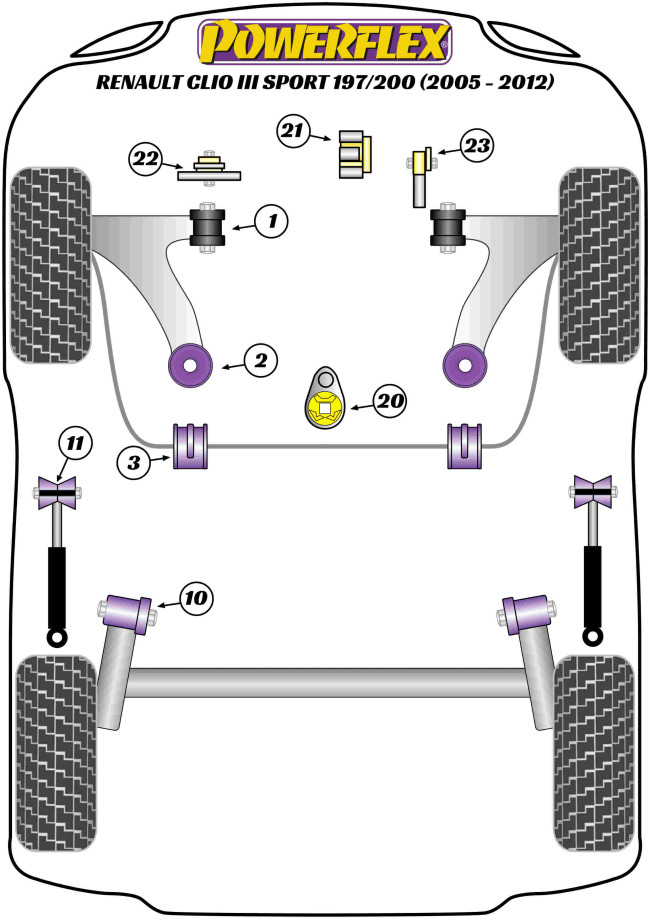

1. PFF60-801G – Front Arm Front Bush Camber Adjustable
This bush allows on-car adjustment of the camber, giving 1.5 degrees of adjustment. For a non adjustable bush use PFF60-801
1. PFF60-801 – Front Arm Front Bush
This is a non adjustable bush, for on-car camber adjustable bush use PFF60-801G.
2. PFF60-802G – Front Arm Rear Bush Caster Offset
This part provides 0.6 degrees of additional caster offset and also gives additional anti lift for improved traction. For a non adjustable bush use PFF60-802.
2. PFF60-802 – Front Arm Rear Bush
This is a non adjustable bush, for a caster offset bush with anti lift use PFF60-802G.
3. PFF60-803-21 – Front Anti Roll Bar Bush 21mm
This part suits 21mm anti roll bars. This bush is half the length of the bracket and uses a spacer, for models with full bush with no spacer use PFF60-503-*.
OEM Part Number: 7701059672
3. PFF60-503-20 – Front Anti Roll Bar Bush 20mm
Fits all Megane II and 2.0L Clio III models up to May 2009. For Clio models with a spacer block and shorter bush, use PFF60-803-*.
OEM Part Number: 7701056678
OEM Part Number: 7701056096
3. PFF60-803-20.5 – Front Anti Roll Bar Bush 20.5mm
This bush is half the length of the bracket and uses a spacer, for models with full bush with no spacer use PFF60-503-*.
OEM Part Number: 7701062549
OEM Part Number: 7701059966
10. PFR60-810 – Rear Beam Mounting Bush
OEM Part Number: 550455096R
11. PFR60-311 – Rear Shock Upper Mount
OEM Part Number: 7700839388
20. PFF60-526 – Rear Lower Engine Mounting Bush
This part replaces the larger bush in extruded bracket to suit 1.4, 1.6 and 2.0L petrol engines and also 1.5L diesel engines. For vehicles with a cast bracket use PFF60-524 or a rubberized bracket use either PFF60-820 or PFF60-920. PFF60-526 is designed to allow a controlled amount of engine movement through voids in the material. The kit includes polyurethane inserts that can be fitted to further reduce engine movement, perfect for track days or vehicles running increased power.
OEM Part Number: 8200500928
OEM Part Number: 8200777542
20. PFF60-8025 – Lower Torque Mount – Road
PFF60-8025 is significantly stiffer than the OE mount and recommended for standard or mildly tuned road cars, using a combination of our Yellow 70A and Purple 80A durometer materials. A small increase in NVH, usually at idle should be expected when stiffening the connecting mount between the engine/transmission and subframe.
OEM Part Number: 8200509784
OEM Part Number: 8200777542
OEM Part Number: 8200042454
20. PFF60-8025P – Lower Torque Mount – Fast Road/Track
PFF60-8025P is a further 20% stiffer than PFF60-8025 being made solely in our Purple 80A durometer material and is recommended for more heavily tuned road or occasional track cars. A small increase in NVH, usually at idle should be expected when stiffening the connecting mount between the engine/transmission and subframe. For an insert only use PFF60-820 (only fits pressed, rubber-coated OEM mount).
OEM Part Number: 8200509784
OEM Part Number: 8200777542
OEM Part Number: 8200042454
20. PFF60-820 – Lower Engine Mount Insert
Fits Clio III Sport & Megane II Sport models inc RS. – This is an insert that fits into and fills voids in the original rubber bush in lower engine mount OE part numbers: 8200042454. This mount is rubber coated. it has been superseded with an alloy extruded bracket part number 8200777542 the insert wont fit the later part. An insert PFF60-526 is available for this part
OEM Part Number: 8200042454
OEM Part Number: 8200777542
21. PFF60-821 – Upper Engine Mount Insert
This insert fits into the voiding of the original mounting bush. Fits Clio III 1.5L diesel and 2.0L petrol engines including Sport models. – Megane II, Scenic II and Grand Scenic II 1.9L diesel and 2.0L petrol engines.
OEM Part Number: 8200131305
OEM Part Number: 8200549046
OEM Part Number: 8200690091
22. PFF60-525 – Gearbox Mounting Bush Insert
This polyurethane insert fits into and fills voids in the original rubber bush. It is designed to limit movement of the engine and gearbox to provide additional stability under acceleration.
OEM Part Number: 8200352861
OEM Part Number: 11220BN720
23. PFF60-822 – Upper Engine Mount Torque Arm Bush
OEM Part Number: 8200298484 / 8200487916
