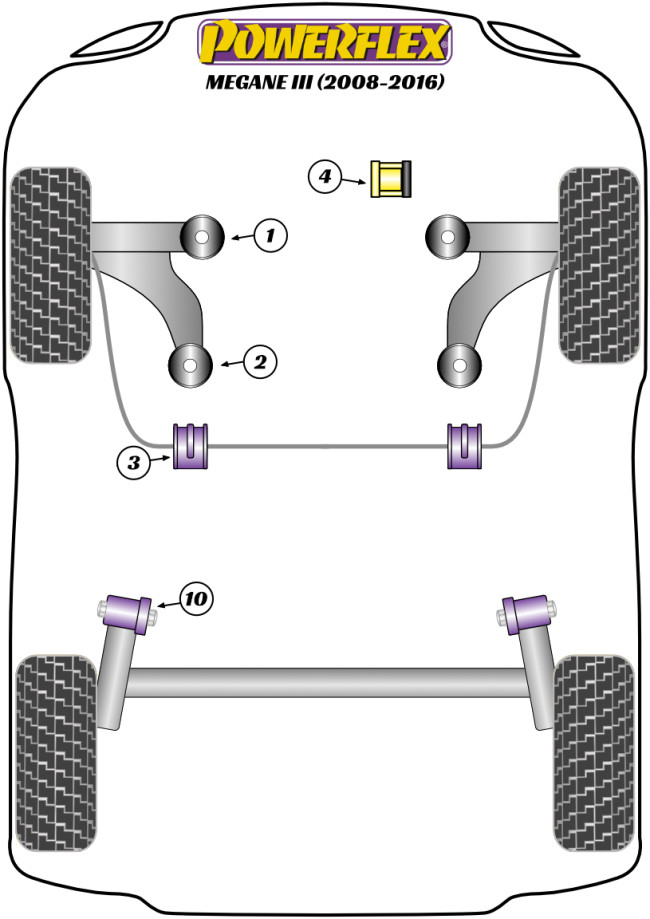

1. PFF60-701G – Front Arm Front Bush Camber Adjustable
This part provides 1.5° of on-car camber adjustment and fits the cast aluminium arm only as fitted to the RS models. For a non-adjustable version of this bush, please use PFF60-701.
OEM Part Number: 545000010R / 545010011R
1. PFF60-701 – Front Arm Front Bush
This part fits the cast aluminium arm only as fitted to the RS models. For a camber adjustable version of this bush, please use PFF60-701G.
OEM Part Number: 545000010R / 545010011R
2. PFF60-702G – Front Arm Rear Bush Caster Offset
This part fits the cast aluminium arm only as fitted to the RS models. It features two steel outer shells to dissipate energy and increase the stiffness of the bush. Additional caster offset of 0.6° provided by the offset stainless steel sleeve. For a non-adjustable version of this bush please use PFF60-702.
OEM Part Number: 545000010R / 545010011R
OEM Part Number: 545601684R
2. PFF60-702 – Front Arm Rear Bush
This part fits the cast aluminium arm only as fitted to the RS models. It features two steel outer shells to dissipate energy and increase the stiffness of the bush. For a version of this bush that offers caster offset, please use PFF60-702G.
OEM Part Number: 545000010R / 545010011R
OEM Part Number: 545601684R
3. PFF60-703-24 – Front Anti Roll Bar Bush – 24mm
Please measure anti roll bar diameter before ordering.
OEM Part Number: 546120316R
4. PFF60-720 – Upper Right Engine Mount Insert
PFF60-720 is made using Yellow 70ShA durometer material. It has been designed to fill the voids in the OE mount for an effective and affordable solution to stiffening the original rubber. It fits 5-ribbed mounts only. A small increase in NVH, usually at idle, should be expected when stiffening the mount that isolates the engine/transmission from the chassis. The harder the material used, the greater the NVH transmitted.
OEM Part Number: 112100057R
OEM Part Number: 112100039R
10. PFR60-510-14 – Rear Beam Mounting Bush 14mm
Fits vehicles that use a bush with a 14mm bolt. For 12mm bolts use PFR60-510.
OEM Part Number: Bush = 550454053R
OEM Part Number: Bolt = 7703102122
10. PFR60-510 – Rear Beam Mounting Bush
Fits bushes that use a 12mm bolt. For 14mm bolts use PFR60-510-14.
OEM Part Number: Bush = 8200038243 / 8200038243
OEM Part Number: Bush = 550450007R / 550440043R
OEM Part Number: Bolt = 7703602319
