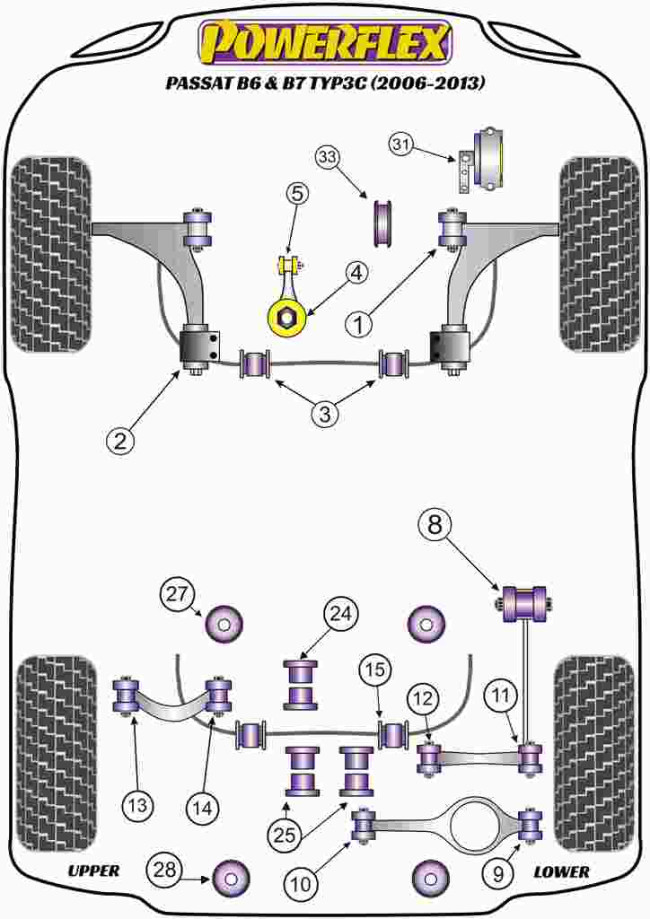

Powerflex Road -puslasarjat – Volkswagen Passat B6 & B7 Typ3C (2006-2015)

1. PFF85-501G – Front Wishbone Front Bush Camber Adjustable
This bush features a CNC machined Stainless Steel sleeve with an offset bore that can be rotated using our bespoke tooling (supplied), giving +/- 0.5 degrees of on-car camber adjustment.
OEM Part Number: Bush = 1K0407182 / 5Q0407182 / 1K0407182A
OEM Part Number: Arm = 1K0407152BG (Steel)
OEM Part Number: Arm = 8J0407151D (Aluminium)

1. PFF85-501 – Front Wishbone Front Bush
For a camber adjustable bush use PFF85-501G.
OEM Part Number: Bush = 1K0407182 / 5Q0407182 / 1K0407182A
OEM Part Number: Arm = 1K0407152BG (Steel)
OEM Part Number: Arm = 8J0407151D (Aluminium)

2. PFF85-502G-5 – Front Wishbone Rear Bush Anti-Lift & Caster Offset
PFF85-502G-5 is a low-resistance polyurethane bush and CNC machined bracket combination providing Anti-Lift and 1° of caster offset. Designed to improve steering precision and braking stability, the revised Anti-Lift and caster geometry provides extra grip and reduced understeer. It is designed to complement PFF85-501G Front Wishbone Front Bush to provide +/- 0.5° degrees of camber adjustment.
OEM Part Number: 8J0199231
OEM Part Number: 3C0199231D / 3C0199231E / 3C0199231F
OEM Part Number: 1K0199231J

2. PFF85-502 – Front Wishbone Rear Bush
OEM Part Number: 3C0199231 / 3C0199231E / 3C0199231F
OEM Part Number: 1K0199231 / 1K0199231J / 1K0199232J

3. PFF85-503-24 – Front Anti Roll Bar Bush 24mm
Please check anti roll bar diameter before ordering
OEM Part Number: Bar = 1K0411303 / 1K0 411 303
OEM Part Number: Bar = 7N0411303 / 7N0 411 303

3. PFF85-503-23 – Front Anti Roll Bar Bush 23mm
Please check anti roll bar diameter before ordering
OEM Part Number: 1K0411303
OEM Part Number: Bar = 1K0411303AM / 1K0 411 303 AM

3. PFF85-503-23.6 – Front Anti Roll Bar Bush 23.6mm
Please check anti roll bar diameter before ordering
OEM Part Number: 1K0411303 / 1K0 411 303
OEM Part Number: 1K0411303BK / 1K0 411 303 BK

3. PFF85-503-22 – Front Anti Roll Bar Bush 22mm
Please check anti roll bar diameter before ordering
OEM Part Number: 1K0411303
OEM Part Number: 1K0411303AQ
OEM Part Number: 3C0411303R

3. PFF85-503-22.5 – Front Anti Roll Bar Bush 22.5mm
Please check anti roll bar diameter before ordering
OEM Part Number: 1K0411303

3. PFF85-503-21.7 – Front Anti Roll Bar Bush 21.7mm
Please check anti roll bar diameter before ordering
OEM Part Number: 1K0411303

3. PFF85-503-20 – Front Anti Roll Bar Bush 20mm
Please check anti roll bar diameter before ordering
OEM Part Number: 1K0411303

3. PFF85-503-20.7 – Front Anti Roll Bar Bush 20.7mm
Please check anti roll bar diameter before ordering
OEM Part Number: 1K0411303

3. PFF85-503-19.6 – Front Anti Roll Bar Bush 19.6mm
Please check anti roll bar diameter before ordering
OEM Part Number: 1K0411303

4. PFF85-704P – Lower Engine Mount Insert (Large) Track
Made using our Purple 80A material, PFF85-704P is recommended for track driven and higher-tuned vehicles from mid-2008 on. For vehicles up to mid-2008 use PFF85-504.Being a stiffer material additional NVH may be experienced when fitting this part.
OEM Part Number: 1K0199867 / 1K0199867R / 1K0199867Q
OEM Part Number: 1K0199868 / 1K0199868R

4. PFF85-504P – Lower Engine Mount Insert (Large) Track
Made from our Purple 80A material, PFF85-504P fits vehicles up to mid-2008 and is recommended for track use or heavily modified vehicles. For vehicles from mid-2008 on use PFF85-704P. Being a stiffer material additional NVH may be experienced when fitting this part.
OEM Part Number: 1K0199867
OEM Part Number: 1K0199868
OEM Part Number: 3C0199867C / 3C0199867D / 3C0199867E

4. PFF85-704R – Lower Engine Mount Insert (Large) Std Diesel
Made from our softer Red 65A material for less NVH, PFF85-704R fits standard diesel vehicles from mid-2008 on. For vehicles up to mid-2008 on use PFF85-504R.
OEM Part Number: 1K0199867 / 1K0199867R / 1K0199867Q
OEM Part Number: 1K0199868 / 1K0199868R

4. PFF85-504R – Lower Engine Mount Insert (Large) Std Diesel
Made from our softest Red 65A material for less NVH, PFF85-504R fits standard diesel vehicles up to mid-2008. For vehicles from mid-2008 on use PFF85-704R.
OEM Part Number: 1K0199867
OEM Part Number: 1K0199868
OEM Part Number: 3C0199867C / 3C0199867D / 3C0199867E

4. PFF85-704 – Lower Engine Mount Insert (Large) Petrol/Tuned Diesel
Made using our Yellow 70A material, PFF85-704 is recommended for standard/mildly tuned petrol vehicles and tuned diesel vehicles from mid-2008 on. For vehicles up to mid-2008 use PFF85-504.
OEM Part Number: 1K0199867 / 1K0199867R / 1K0199867Q
OEM Part Number: 1K0199868 / 1K0199868R

4. PFF85-504 – Lower Engine Mount Insert (Large) Petrol/Tuned Diesel
Made using our Yellow 70A material, PFF85-504 fits standard/mildly tuned petrol vehicles and tuned diesel vehicles up to mid-2008. For vehicles from mid-2008 on use PFF85-704.
OEM Part Number: 1K0199867
OEM Part Number: 1K0199868
OEM Part Number: 3C0199867C / 3C0199867D / 3C0199867E

5. PFF85-505 – Lower Engine Mount Small Bush
OEM Part Number: 1J0199851
OEM Part Number: 1K0199855

5. PFF3-905 – Lower Engine Mount Small Bush
PFF3-905 Lower Engine Mount Small Bush is a replacement for the often softened and perished, rubber bush in the original ’dog bone’ shaped bracket, helping to restrict engine movement and improve gear changes. Fits 42mm diameter, for bushes with a 38.5mm diameter please use PFF85-505.
OEM Part Number: 3C0199855M
OEM Part Number: 3C0199855K
OEM Part Number: 3C0199855E / 3C0199855J

8. PFR85-508 – Rear Tie Bar to Chassis Front Bush
OEM Part Number: Bush = 1K0505541D
OEM Part Number: Bush = 5C0501541A

9. PFR85-509 – Rear Lower Spring Mount Outer
This bush is suitable for Road and Black Series applications.
It is the same part as the Black Series but with Road Series packaging.
Fits into 1K0505311AB wishbone.
OEM Part Number: 1K050555
OEM Part Number: 1K0505311

10. PFR85-510 – Rear Lower Spring Mount Inner
OEM Part Number: Arm = 1K0505311AB
OEM Part Number: Bush = 1K0505171C

11. PFR85-511 – Rear Lower Track Rod Outer Bush
OEM Part Number: Arm = 1K0501529F / 1K0 501 529 F
OEM Part Number: Arm = 1K0501529J / 1K0 501 529 J
OEM Part Number: Arm = 1K0501529C / 1K0 501 529 C

12. PFR85-512 – Rear Lower Track Rod Inner Bush
OEM Part Number: Arm = 1K0501529F / 1K0 501 529 F
OEM Part Number: Arm = 1K0501529J / 1K0 501 529 J
OEM Part Number: Arm = 1K0501529C / 1K0 501 529 C

13. PFR85-513G – Rear Upper Wishbone Outer Bush Camber Adjustable
PFR85-513G Rear Upper Wishbone Outer Bush is a camber adjustable version of our existing PFR85-513 Rear Wishbone Outer Bush for a variety of VAG models. Made in our Black 95A durometer material and supplied with a CNC-machined offset-bore sleeve and adjusting spanner, it offers a range of up to +/- 1.0° of on-car camber adjustment at the rear suspension knuckle.
OEM Part Number: Arm = 5Q0505323D / 5Q0 505 323 D
OEM Part Number: Arm = 5Q0505351B / 5Q0 505 351 B
OEM Part Number: Arm = 1K0505323N / 1K0 505 323 N

13. PFR85-513 – Rear Upper Wishbone Outer Bush
OEM Part Number: Arm = 5Q0505323D / 5Q0 505 323 D
OEM Part Number: Arm = 1K0505323N / 1K0 505 323 N

14. PFR85-514 – Rear Upper Wishbone Inner Bush
OEM Part Number: Arm = 5Q0505323D / 5Q0 505 323 D
OEM Part Number: Arm = 1K0505323N / 1K0 505 323 N

15. PFR85-515-21.7 – Rear Anti Roll Bar Bush 21.7mm
Please check anti roll bar diameter before ordering
OEM Part Number: 1K0511327AS

15. PFR85-515-20.7 – Rear Anti Roll Bar Bush 20.7mm
Please check anti roll bar diameter before ordering.
OEM Part Number: 1K0511327AR

15. PFR85-515-20.5 – Rear Anti Roll Bar Bush 20.5mm
Please check anti roll bar diameter before ordering

15. PFR85-515-19.6 – Rear Anti Roll Bar Bush 19.6mm
Please check anti roll bar diameter before ordering
OEM Part Number: 1K0511327AQ

15. PFR85-515-18 – Rear Anti Roll Bar Bush 18mm
Please check anti roll bar diameter before ordering

15. PFR85-515-18.5 – Rear Anti Roll Bar Bush 18.5mm
Please check anti roll bar diameter before ordering.
OEM Part Number: 1K0511327AP

24. PFR85-524 – Rear Diff Front Mounting Bush
This bush fits 4 wheel drive models only where the differential casing front mount measures 35mm in width. The 35mm differential casing mount is found on AWD MQB platform and 2015-on PQ35 platform vehicles. The OEM rubber front mount must be part number 1K0 599 437 for this bush to replace. If in doubt, measure the height of the casing front mount before ordering. If the mount is 30mm in height or the OEM part number on your vehicle is 1K0 599 431 then use PFR85-523.
OEM Part Number: 1K0599437 / 1K0 599 437
OEM Part Number: 1K0599438 / 1K0 599 438

25. PFR85-525 – Rear Diff Rear Mounting Bush
This bush fits 4 wheel drive models only.
OEM Part Number: 1K0599437 / 1K0 599 437
OEM Part Number: 1K0599438 / 1K0 599 438

27. PFR85-527 – Rear Subframe Front Mounting Bush
This bush fits 4 wheel drive models only up to 28.5.2012.
OEM Part Number: 1K0505145J

28. PFR85-528 – Rear Subframe Rear Mounting Bush
This bush fits 4 wheel drive models only up to 28.5.2012.
OEM Part Number: 1K0505145K
OEM Part Number: 1K0505145H

31. PFF85-532 – Upper Engine Mount Insert
Designed to fill the voiding in the OE rubber mount, it smooths out gear changes by stiffening and supporting the often perished rubber bush, which is common for failure on tuned vehicles. This will provide a more precise and settled transmission response during acceleration and deceleration. A small increase in NVH, usually at idle, should be expected when stiffening the connecting mount between the engine/transmission and chassis. The harder the material used, the greater the NVH transmitted especially on diesel vehicles. Does not fit Audi TTRS or RS3 models.
OEM Part Number: 1K0199262M / 1K0 199 262 M

31. PFF85-531 – Upper Engine Mount Insert
PFF85-531 is an insert designed to fill the voids of the original bush. Please check voids of your original mount are the same as the image shown for correct fitment. Does not fit Audi TTRS or RS3 models.
OEM Part Number: 1K0199262AM / 1K0199262P
OEM Part Number: 1K0199262AR / 1K0199262AS / 1K0199262AT
OEM Part Number: 8J0199262

33. PFF85-533 – Steering Rack Mounting Bush
OEM Part Number: Repair Set = 1K0498884 / 1K0 498 884
OEM Part Number: Bush = 1K0423884B / 1K0 423 884 B

PF3-1663K – Jacking Point Insert Kit of 4
PFF3-1663 Jacking Point Insert is a 95A durometer polyurethane bung that presses up into the vacant hole in the chassis providing a fit and forget solution for safer lifting – Recommended for lifting across 4 lift points simultaneously to avoid damage. For those that have the OE lifting adaptors, PFF3-1662 Magnetic Jack Pad is a CNC-machined Jack Pad with a built-in magnet to suit OE lifting adaptors, 8N0803855 and 8N0804583, that many owners may already have fitted. Its magnetic head self-locates into the recess of the metal OE adaptor ensuring a safe and solid lift every time, again recommended for use in sets of 4 simultaneously.
OEM Part Number: 8N0804583

PF3-1663 – Jacking Point Insert
PFF3-1663 Jacking Point Insert is a 95A durometer polyurethane bung that presses up into the vacant hole in the chassis providing a fit and forget solution for safer lifting – Recommended for lifting across 4 lift points simultaneously to avoid damage. For those that have the OE lifting adaptors, PFF3-1662 Magnetic Jack Pad is a CNC-machined Jack Pad with a built-in magnet to suit OE lifting adaptors, 8N0803855 and 8N0804583, that many owners may already have fitted. Its magnetic head self-locates into the recess of the metal OE adaptor ensuring a safe and solid lift every time, again recommended for use in sets of 4 simultaneously.
OEM Part Number: 8N0804583

PF3-1661 – Jack Pad Adaptor
PF3-1661 is a polyurethane jack pad to fit around and protect the sill, designed to help lift stability and location, whilst protecting the underside of your vehicle.
OEM Part Number: 8K0 802 247 B
