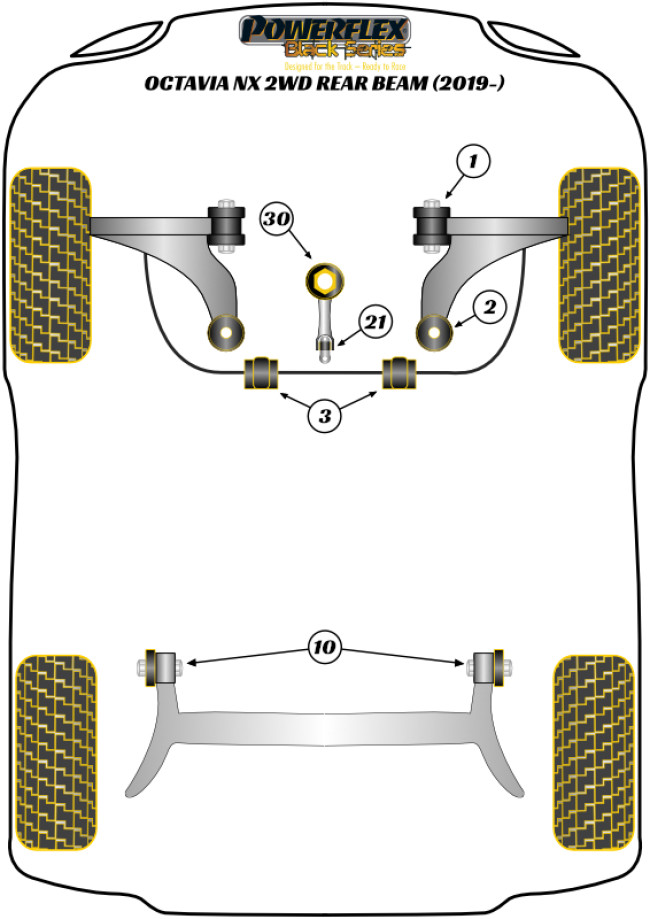

1. PFF85-501GBLK – Front Wishbone Front Bush Camber Adjustable
This bush features a CNC machined Stainless Steel sleeve with an offset bore that can be rotated using our bespoke tooling (supplied), giving +/- 0.5 degrees of on-car camber adjustment.
OEM Part Number: Bush = 1K0407182 / 5Q0407182 / 1K0407182A
OEM Part Number: Arm = 1K0407152BG (Steel)
OEM Part Number: Arm = 8J0407151D (Aluminium)
1. PFF85-501BLK – Front Wishbone Front Bush
OEM Part Number: Bush = 1K0407182 / 5Q0407182 / 1K0407182A
OEM Part Number: Arm = 1K0407152BG (Steel)
OEM Part Number: Arm = 8J0407151D (Aluminium)
2. PFF85-802BLK – Front Wishbone Rear Bush
Fits steel subframes and steel wishbones only. This part features an offset bore to the sleeve to match the caster offset of the OE bush. For further caster adjustment for track/motorsport applications, use PFF3-902GBLK.
OEM Part Number: Bush = 5C0407183 / 5Q0407183 / 81A407183
OEM Part Number: Arm = 5C0407151 / 5Q0 407153 / 1K0 407 151 BE
OEM Part Number: Arm = 81A407151C / 81A407152C / 1K0 407 152 BE
3. PFF85-803-24BLK – Front Anti Roll Bar Bush 24mm
Please check anti roll bar diameter before ordering.
OEM Part Number: 5Q0411303N / 5Q0 411 303 N
OEM Part Number: 5Q0411303AA / 5Q0 411 303 AA
OEM Part Number: 5Q0411303R / 5Q0 411 303 R
10. PFR85-810BLK – Rear Beam Mounting Bush
OEM Part Number: 5Q0501541C
21. PFF3-1325BLK – Lower Torque Mount Small Bush
PFF3-1325BLK Lower Torque Mount Bush is made from our stiffest Black 95A material to provide a durable replacement for the factory rubber bush to give road or tuned vehicles a sharper throttle response and more positive gear-change without compromising ride quality and NVH. An increase in stiffness by 50% over the worn OE rubber bush helps to reduce excessive engine movement caused by the torque reaction of the engine during acceleration and deceleration, one of the biggest causes of wheel-hop on tuned FWD or front-engined vehicles. Please check which type of bracket is fitted to the vehicle before ordering. See the part numbers above and photos below for reference.
OEM Part Number: 5Q0199855J
21. PFF3-1324BLK – Lower Torque Mount Small Bush
Made using our Black 95A Durometer Material to increase stiffness over worn rubber by up to 50% and improve durability, preventing such things as wheel hop and imprecise gear-shifting. This bush fits the mount with the extruded bracket without voids, see part numbers above and photos below, check which bracket is fitted to the vehicle before ordering. For an extruded bracket with voids use PFF3-1320. For a cast bracket use PFF3-1321
OEM Part Number: 5Q0 199 855 AG
OEM Part Number: 5Q0 199 855 AH
21. PFF3-1320BLK – Lower Torque Mount Small Bush
Made using our Black 95A Durometer Material to increase stiffness over worn rubber by up to 50% and improve durability, preventing such things as wheel hop and imprecise gear-shifting. This bush fits the mount with the extruded bracket with voids, see part number above and photos below, check which bracket is fitted to the vehicle before ordering. For an extruded bracket without voids use PFF3-1324. For a cast bracket use PFF3-1321.
OEM Part Number: 5Q0 199 855 AD
30. PFF85-832BLK – Lower Engine Mount (Large) Insert
OEM Part Number: 5Q0198037B / 5Q0 198 037 B
OEM Part Number: 5Q0198037C / 5Q0 198 037 C / 5Q0 199 867 J
OEM Part Number: 5Q0198037F / 5Q0 198 037 F / 5Q0199867J
30. PFF85-830BLK – Lower Engine Mount Insert (Large)
OEM Part Number: 5Q0198037A / 5Q0 198 037 A / 5Q0 198 037 / 5Q0198037
OEM Part Number: 8V0198037 / 8V0 198 037 / 5Q0199868 / 5Q0 199 868
OEM Part Number: 5Q0199867 / 5Q0 199 867
30. PFF85-833BLK – Front Lower Engine Mount Hybrid Bush (Large) – Track/MSport
PFF85-833 replaces the lower half of the original bush whilst including an insert to fit into and fill the voids in the upper bush to minimise wheel hop and improve gear-shifting. This unique bush has been designed to be fitted without subframe removal and avoids associated wheel alignment costs.
OEM Part Number: 5Q0198037B / 5Q0 198 037 B
OEM Part Number: 5Q0198037C / 5Q0 198 037 C / 5Q0 199 867 J
OEM Part Number: 5Q0198037F / 5Q0 198 037 F / 5Q0199867J
30. PFF85-831BLK – Front Lower Engine Mount Hybrid Bush (Large) – Track/MSport
PFF85-831 replaces the lower half of the original bush OEM part number 5Q0 198 037 / 5Q0 198 037 A and includes an insert to fit into and fill the voids in the upper bush. This unique bush has been designed to be fitted without subframe removal from the vehicle and avoids associated wheel alignment costs.
OEM Part Number: 5Q0198037A / 5Q0 198 037 A / 5Q0 198 037 / 5Q0198037
OEM Part Number: 8V0198037 / 8V0 198 037 / 5Q0199868 / 5Q0 199 868
OEM Part Number: 5Q0199867 / 5Q0 199 867
