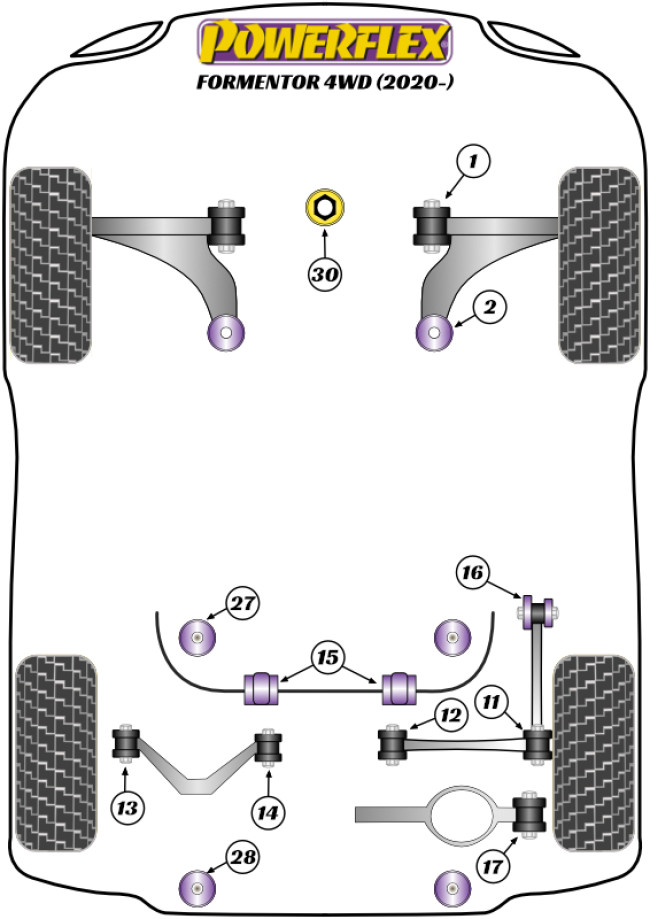

1. PFF85-501G – Front Wishbone Front Bush Camber Adjustable
This bush features a CNC machined Stainless Steel sleeve with an offset bore that can be rotated using our bespoke tooling (supplied), giving +/- 0.5 degrees of on-car camber adjustment.
OEM Part Number: Bush = 1K0407182 / 5Q0407182 / 1K0407182A
OEM Part Number: Arm = 1K0407152BG (Steel)
OEM Part Number: Arm = 8J0407151D (Aluminium)
1. PFF85-501 – Front Wishbone Front Bush
For a camber adjustable bush use PFF85-501G.
OEM Part Number: Bush = 1K0407182 / 5Q0407182 / 1K0407182A
OEM Part Number: Arm = 1K0407152BG (Steel)
OEM Part Number: Arm = 8J0407151D (Aluminium)
2. PFF85-802 – Front Wishbone Rear Bush
Fits steel subframes and steel wishbones only. This part features an offset bore to the sleeve to match the caster offset of the OE bush. For further caster adjustment for track/motorsport applications, use PFF3-902G.
OEM Part Number: Bush = 5C0407183 / 5Q0407183 / 81A407183
OEM Part Number: Arm = 5C0407151 / 5Q0 407153 / 1K0 407 151 BE
OEM Part Number: Arm = 81A407151C / 81A407152C / 1K0 407 152 BE
2. PFF3-1302 – Front Wishbone Rear Bush
Made in our Black 95A material with a tapered bore to reduce stress during articulation, this bush fits vehicles with the combination of an aluminium subframe (OE Part No. 5Q0199369, 5WA199369A and 3Q0199369E) and pressed-steel wishbones only. For vehicles with a steel subframe, please use PFF85-802. For vehicles requiring further on-car caster adjustment, please use PFF3-902G.
OEM Part Number: Bush = 5C0407183 / 5Q0407183 / 81A407183
OEM Part Number: Arm = 5C0407151 / 5Q0407153 / 5Q0407151R / 5Q0407152R
OEM Part Number: Arm = 1K0407151BE / 1K0407152BE / 81A407151C / 81A407152C
11. PFR85-811 – Rear Lower Track Rod Outer Bush
OEM Part Number: Arm = 5Q0501529C / 5Q0 501 529 C
OEM Part Number: Arm = 5Q0501529F / 5Q0 501 529 F
OEM Part Number: Arm = 5Q0505311C / 5Q0 505 311 C
12. PFR85-812 – Rear Lower Track Rod Inner Bush
OEM Part Number: Arm = 5Q0501529C / 5Q0 501 529 C
13. PFR85-513G – Rear Upper Wishbone Outer Bush Camber Adjustable
PFR85-513G Rear Upper Wishbone Outer Bush is a camber adjustable version of our existing PFR85-513 Rear Wishbone Outer Bush for a variety of VAG models. Made in our Black 95A durometer material and supplied with a CNC-machined offset-bore sleeve and adjusting spanner, it offers a range of up to +/- 1.0° of on-car camber adjustment at the rear suspension knuckle.
OEM Part Number: Arm = 5Q0505323D / 5Q0 505 323 D
OEM Part Number: Arm = 5Q0505351B / 5Q0 505 351 B
OEM Part Number: Arm = 1K0505323N / 1K0 505 323 N
13. PFR85-513 – Rear Upper Wishbone Outer Bush
OEM Part Number: Arm = 5Q0505323D / 5Q0 505 323 D
OEM Part Number: Arm = 1K0505323N / 1K0 505 323 N
14. PFR85-514 – Rear Upper Wishbone Inner Bush
OEM Part Number: Arm = 5Q0505323D / 5Q0 505 323 D
OEM Part Number: Arm = 1K0505323N / 1K0 505 323 N
15. PFR85-815-21.7 – Rear Anti Roll Bar Bush 21.7mm
OEM Part Number: 5Q0511305AT /5Q0511305BF
OEM Part Number: 5Q0511305BA / 5Q0511305BE
OEM Part Number: 8V0 511 305 A / 8V0511305A
15. PFR85-815-18.5 – Rear Anti Roll Bar Bush 18.5mm
OEM Part Number: 5Q0511305AQ
16. PFR85-816 – Rear Trailing Arm Bush
OEM Part Number: 5Q0505541A
17. PFR85-817 – Rear Lower Arm Outer Bush
OEM Part Number: 1K0505553A / 1K0 505 553 A
OEM Part Number: 5Q0505553 / 5Q0 505 553
OEM Part Number: 5QD505553 / 5QD 505 553
27. PFR85-827 – Rear Subframe Front Mounting Bush
This bush uses our Purple 80A durometer material with bonded supporting washers for strengthening and a bespoke end face design to reduce noise transmission to the cabin, whilst maintaining durability and subframe location.
OEM Part Number: 5Q0 505 145 F
OEM Part Number: 5Q0 505 145 D
OEM Part Number: 5Q0 505 145 J
28. PFR85-828 – Rear Subframe Rear Mounting Bush
This bush uses our Purple 80A durometer material with bonded supporting washers for strengthening and a bespoke end face design to reduce noise transmission to the cabin, whilst maintaining durability and subframe location.
OEM Part Number: 5Q0 505 145 E
OEM Part Number: 5Q0 505 145 K
OEM Part Number: 5Q0 505 145 H
30. PFF85-830P – Lower Engine Mount Insert (Large) Track Use
Suitable for higher powered cars and track cars, using a stiffer material which helps further reduce engine movement over fitting the standard PFF85-830 insert, being a stiffer material additional noise and vibration may be felt.
OEM Part Number: 5Q0198037A / 5Q0 198 037 A / 5Q0 198 037 / 5Q0198037
OEM Part Number: 8V0198037 / 8V0 198 037 / 5Q0199868 / 5Q0 199 868
OEM Part Number: 5Q0199867 / 5Q0 199 867
30. PFF85-830R – Lower Engine Mount Insert (Large) Diesel
Suitable for diesel models, using a softer material that helps reduce movement from the bush but transmits less noise and vibration over fitting the standard PFF85-830 insert.
OEM Part Number: 5Q0198037A / 5Q0 198 037 A / 5Q0 198 037 / 5Q0198037
OEM Part Number: 8V0198037 / 8V0 198 037 / 5Q0199868 / 5Q0 199 868
OEM Part Number: 5Q0199867 / 5Q0 199 867
30. PFF85-830 – Lower Engine Mount Insert (Large)
OEM Part Number: 5Q0198037A / 5Q0 198 037 A / 5Q0 198 037 / 5Q0198037
OEM Part Number: 8V0198037 / 8V0 198 037 / 5Q0199868 / 5Q0 199 868
OEM Part Number: 5Q0199867 / 5Q0 199 867
30. PFF85-832P – Lower Engine Mount (Large) Insert Track Use
Made in Purple 80A and suitable for higher powered cars and track cars, this part helps to further reduce engine movement over fitting the standard PFF85-832 insert. Increased NVH may be felt when fitted.
OEM Part Number: 5Q0198037B / 5Q0 198 037 B
OEM Part Number: 5Q0198037C / 5Q0 198 037 C / 5Q0 199 867 J
OEM Part Number: 5Q0198037F / 5Q0 198 037 F / 5Q0199867J
30. PFF85-832R – Lower Engine Mount (Large) Insert Diesel
Some NVH transmission should be expected when fitting this part to a Diesel vehicle.
OEM Part Number: 5Q0198037B / 5Q0 198 037 B
OEM Part Number: 5Q0198037C / 5Q0 198 037 C / 5Q0 199 867 J
OEM Part Number: 5Q0198037F / 5Q0 198 037 F / 5Q0199867J
30. PFF85-832 – Lower Engine Mount (Large) Insert
OEM Part Number: 5Q0198037B / 5Q0 198 037 B
OEM Part Number: 5Q0198037C / 5Q0 198 037 C / 5Q0 199 867 J
OEM Part Number: 5Q0198037F / 5Q0 198 037 F / 5Q0199867J
30. PFF85-833 – Front Lower Engine Mount Hybrid Bush (Large) – Road
PFF85-833 replaces the lower half of the original bush whilst including an insert to fit into and fill the voids in the upper bush to minimise wheel hop and improve gear-shifting. This unique bush has been designed to be fitted without subframe removal and avoids associated wheel alignment costs. .
OEM Part Number: 5Q0198037B / 5Q0 198 037 B
OEM Part Number: 5Q0198037C / 5Q0 198 037 C / 5Q0 199 867 J
OEM Part Number: 5Q0198037F / 5Q0 198 037 F / 5Q0199867J
30. PFF85-831 – Front Lower Engine Mount Hybrid Bush (Large) – Road
PFF85-831 replaces the lower half of the original bush whilst including an insert to fit into and fill the voids in the upper bush to minimise wheel hop and improve gear-shifting. This unique bush has been designed to be fitted without subframe removal and avoids associated wheel alignment costs.
OEM Part Number: 5Q0198037A / 5Q0 198 037 A / 5Q0 198 037 / 5Q0198037
OEM Part Number: 8V0198037 / 8V0 198 037 / 5Q0199868 / 5Q0 199 868
OEM Part Number: 5Q0199867 / 5Q0 199 867
30. PFF85-833P – Front Lower Engine Mount Hybrid Bush (Large) – Fast Road/Track
PFF85-833 replaces the lower half of the original bush whilst including an insert to fit into and fill the voids in the upper bush to minimise wheel hop and improve gear-shifting. This unique bush has been designed to be fitted without subframe removal and avoids associated wheel alignment costs. .
OEM Part Number: 5Q0198037B / 5Q0 198 037 B
OEM Part Number: 5Q0198037C / 5Q0 198 037 C / 5Q0 199 867 J
OEM Part Number: 5Q0198037F / 5Q0 198 037 F / 5Q0199867J
30. PFF85-831P – Front Lower Engine Mount Hybrid Bush (Large) – Fast Road/Track
PFF85-831P replaces the lower half of the original bush whilst including an insert to fit into and fill the voids in the upper bush to minimise wheel hop and improve gear-shifting. This unique bush has been designed to be fitted without subframe removal and avoids associated wheel alignment costs. This part is made in our Purple Shore A 80 for vehicles running increased power or that see occasional track use.
OEM Part Number: 5Q0198037A / 5Q0 198 037 A / 5Q0 198 037 / 5Q0198037
OEM Part Number: 8V0198037 / 8V0 198 037 / 5Q0199868 / 5Q0 199 868
OEM Part Number: 5Q0199867 / 5Q0 199 867
