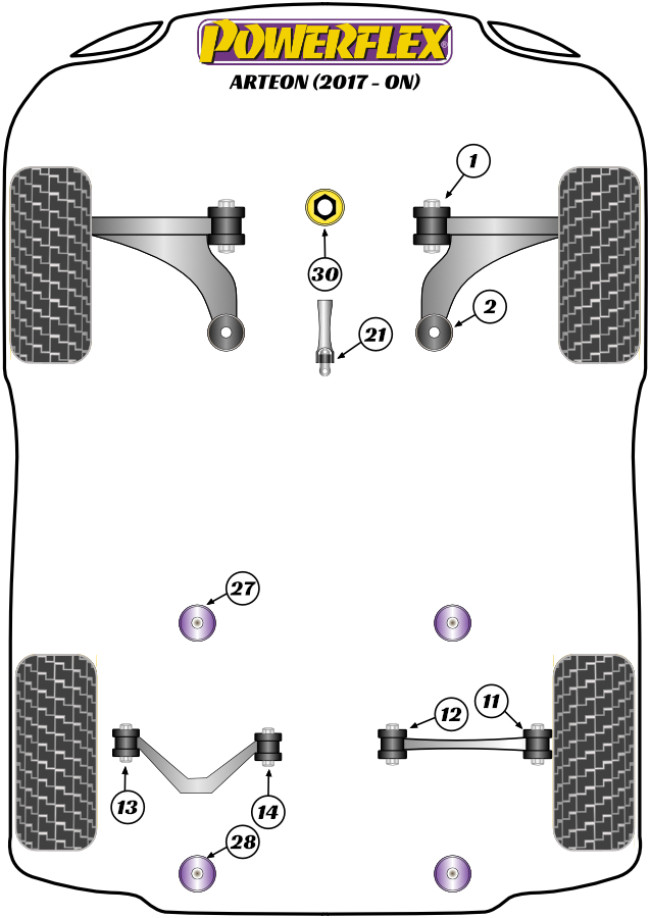

1. PFF85-501G – Front Wishbone Front Bush Camber Adjustable
This bush features a CNC machined Stainless Steel sleeve with an offset bore that can be rotated using our bespoke tooling (supplied), giving +/- 0.5 degrees of on-car camber adjustment.
OEM Part Number: Bush = 1K0407182 / 5Q0407182 / 1K0407182A
OEM Part Number: Arm = 1K0407152BG (Steel)
OEM Part Number: Arm = 8J0407151D (Aluminium)
1. PFF85-501 – Front Wishbone Front Bush
For a camber adjustable bush use PFF85-501G.
OEM Part Number: Bush = 1K0407182 / 5Q0407182 / 1K0407182A
OEM Part Number: Arm = 1K0407152BG (Steel)
OEM Part Number: Arm = 8J0407151D (Aluminium)
2. PFF3-902G – Front Wishbone Rear Bush, Caster Adjustable
Using a Black 95A durometer ball moulded to an all-new offset stainless steel sleeve and machined nylon cups, this new and improved design maximises performance and articulation while retaining the benefit of on-car adjustability of caster by +/- 0.33 degs.
OEM Part Number: Bush = 8S0407183B / 81A407183 / 5Q0407183L
OEM Part Number: Arm = 8S0407151B / 81A407151C
OEM Part Number: Arm = 8S0407151D / 81A407152C
2. PFF85-802 – Front Wishbone Rear Bush
Fits steel subframes and steel wishbones only. This part features an offset bore to the sleeve to match the caster offset of the OE bush. For further caster adjustment for track/motorsport applications, use PFF3-902G.
OEM Part Number: Bush = 5C0407183 / 5Q0407183 / 81A407183
OEM Part Number: Arm = 5C0407151 / 5Q0 407153 / 1K0 407 151 BE
OEM Part Number: Arm = 81A407151C / 81A407152C / 1K0 407 152 BE
2. PFF3-1302 – Front Wishbone Rear Bush
Made in our Black 95A material with a tapered bore to reduce stress during articulation, this bush fits vehicles with the combination of an aluminium subframe (OE Part No. 5Q0199369, 5WA199369A and 3Q0199369E) and pressed-steel wishbones only. For vehicles with a steel subframe, please use PFF85-802. For vehicles requiring further on-car caster adjustment, please use PFF3-902G.
OEM Part Number: Bush = 5C0407183 / 5Q0407183 / 81A407183
OEM Part Number: Arm = 5C0407151 / 5Q0407153 / 5Q0407151R / 5Q0407152R
OEM Part Number: Arm = 1K0407151BE / 1K0407152BE / 81A407151C / 81A407152C
11. PFR85-811 – Rear Lower Track Rod Outer Bush
OEM Part Number: Arm = 5Q0501529C / 5Q0 501 529 C
OEM Part Number: Arm = 5Q0501529F / 5Q0 501 529 F
OEM Part Number: Arm = 5Q0505311C / 5Q0 505 311 C
12. PFR85-812 – Rear Lower Track Rod Inner Bush
OEM Part Number: Arm = 5Q0501529C / 5Q0 501 529 C
13. PFR85-513G – Rear Upper Wishbone Outer Bush Camber Adjustable
PFR85-513G Rear Upper Wishbone Outer Bush is a camber adjustable version of our existing PFR85-513 Rear Wishbone Outer Bush for a variety of VAG models. Made in our Black 95A durometer material and supplied with a CNC-machined offset-bore sleeve and adjusting spanner, it offers a range of up to +/- 1.0° of on-car camber adjustment at the rear suspension knuckle.
OEM Part Number: Arm = 5Q0505323D / 5Q0 505 323 D
OEM Part Number: Arm = 5Q0505351B / 5Q0 505 351 B
OEM Part Number: Arm = 1K0505323N / 1K0 505 323 N
13. PFR85-513 – Rear Upper Wishbone Outer Bush
OEM Part Number: Arm = 5Q0505323D / 5Q0 505 323 D
OEM Part Number: Arm = 1K0505323N / 1K0 505 323 N
14. PFR85-514 – Rear Upper Wishbone Inner Bush
OEM Part Number: Arm = 5Q0505323D / 5Q0 505 323 D
OEM Part Number: Arm = 1K0505323N / 1K0 505 323 N
21. PFF3-1326 – Lower Torque Mount Small Bush
PFF3-1326 Lower Torque Mount Bush is made from our stiffest Black 95A material to provide a durable replacement for the factory rubber bush to give road or tuned vehicles a sharper throttle response and more positive gear-change without compromising ride quality and NVH. An increase in stiffness by 50% over the worn OE rubber bush helps to reduce excessive engine movement caused by the torque reaction of the engine during acceleration and deceleration, one of the biggest causes of wheel-hop on tuned FWD or front-engined vehicles. Please check which type of bracket is fitted to the vehicle before ordering.
OEM Part Number: 5Q0199855Q
21. PFF3-1325 – Lower Torque Mount Small Bush
PFF3-1325 Lower Torque Mount Bush is made from our stiffest Black 95A material to provide a durable replacement for the factory rubber bush to give road or tuned vehicles a sharper throttle response and more positive gear-change without compromising ride quality and NVH. An increase in stiffness by 50% over the worn OE rubber bush helps to reduce excessive engine movement caused by the torque reaction of the engine during acceleration and deceleration, one of the biggest causes of wheel-hop on tuned FWD or front-engined vehicles. Please check which type of bracket is fitted to the vehicle before ordering. See the part numbers above and photos below for reference.
OEM Part Number: 5Q0199855J
21. PFF3-1324 – Lower Torque Mount Small Bush
Made using our Black 95A Durometer Material to increase stiffness over worn rubber by up to 50% and improve durability, preventing such things as wheel hop and imprecise gear-shifting. This bush fits the mount with the extruded bracket without voids, see part numbers above and photos below, check which bracket is fitted to the vehicle before ordering. For an extruded bracket with voids use PFF3-1320. For a cast bracket use PFF3-1321
OEM Part Number: 5Q0 199 855 AG
OEM Part Number: 5Q0 199 855 AH
21. PFF3-1321 – Lower Torque Mount Small Bush
Made using our Black 95A Durometer Material to increase stiffness over worn rubber by up to 50% and improve durability, preventing such things as wheel hop and imprecise gear-shifting. This bush fits the mount with the cast bracket, see part numbers above and photos below, check which bracket is fitted to the vehicle before ordering. For an extruded bracket without voids use PFF3-1324. For an extruded bracket with voids use PFF3-1320.
OEM Part Number: 5Q0199855C
OEM Part Number: 5Q0199855AB
OEM Part Number: 5Q0199855AF
21. PFF3-1320 – Lower Torque Mount Small Bush
Made using our Black 95A Durometer Material to increase stiffness over worn rubber by up to 50% and improve durability, preventing such things as wheel hop and imprecise gear-shifting. This bush fits the mount with the extruded bracket with voids, see part number above and photos below, check which bracket is fitted to the vehicle before ordering. For an extruded bracket without voids use PFF3-1324. For a cast bracket use PFF3-1321.
OEM Part Number: 5Q0 199 855 AD
27. PFR85-827 – Rear Subframe Front Mounting Bush
This bush uses our Purple 80A durometer material with bonded supporting washers for strengthening and a bespoke end face design to reduce noise transmission to the cabin, whilst maintaining durability and subframe location.
OEM Part Number: 5Q0 505 145 F
OEM Part Number: 5Q0 505 145 D
OEM Part Number: 5Q0 505 145 J
28. PFR85-828 – Rear Subframe Rear Mounting Bush
This bush uses our Purple 80A durometer material with bonded supporting washers for strengthening and a bespoke end face design to reduce noise transmission to the cabin, whilst maintaining durability and subframe location.
OEM Part Number: 5Q0 505 145 E
OEM Part Number: 5Q0 505 145 K
OEM Part Number: 5Q0 505 145 H
