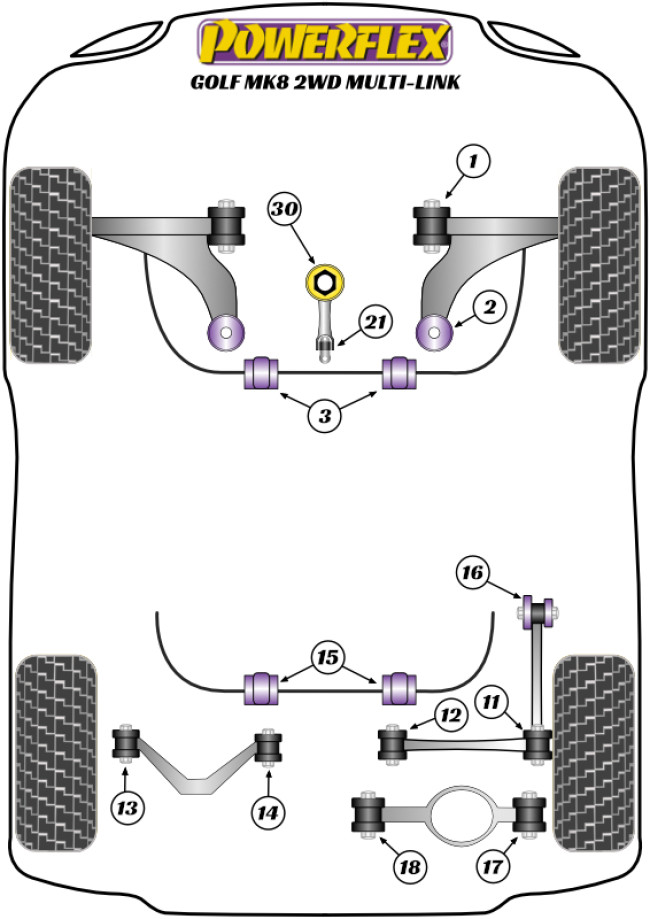

1. PFF85-501G – Front Wishbone Front Bush Camber Adjustable
This bush features a CNC machined Stainless Steel sleeve with an offset bore that can be rotated using our bespoke tooling (supplied), giving +/- 0.5 degrees of on-car camber adjustment.
OEM Part Number: Bush = 1K0407182 / 5Q0407182 / 1K0407182A
OEM Part Number: Arm = 1K0407152BG (Steel)
OEM Part Number: Arm = 8J0407151D (Aluminium)
1. PFF85-501 – Front Wishbone Front Bush
For a camber adjustable bush use PFF85-501G.
OEM Part Number: Bush = 1K0407182 / 5Q0407182 / 1K0407182A
OEM Part Number: Arm = 1K0407152BG (Steel)
OEM Part Number: Arm = 8J0407151D (Aluminium)
2. PFF3-902G – Front Wishbone Rear Bush, Caster Adjustable
Using a Black 95A durometer ball moulded to an all-new offset stainless steel sleeve and machined nylon cups, this new and improved design maximises performance and articulation while retaining the benefit of on-car adjustability of caster by +/- 0.33 degs.
OEM Part Number: Bush = 8S0407183B / 81A407183 / 5Q0407183L
OEM Part Number: Arm = 8S0407151B / 81A407151C
OEM Part Number: Arm = 8S0407151D / 81A407152C
2. PFF85-802 – Front Wishbone Rear Bush
Fits steel subframes and steel wishbones only. This part features an offset bore to the sleeve to match the caster offset of the OE bush. For further caster adjustment for track/motorsport applications, use PFF3-902G.
OEM Part Number: Bush = 5C0407183 / 5Q0407183 / 81A407183
OEM Part Number: Arm = 5C0407151 / 5Q0 407153 / 1K0 407 151 BE
OEM Part Number: Arm = 81A407151C / 81A407152C / 1K0 407 152 BE
2. PFF3-1302 – Front Wishbone Rear Bush
Made in our Black 95A material with a tapered bore to reduce stress during articulation, this bush fits vehicles with the combination of an aluminium subframe (OE Part No. 5Q0199369, 5WA199369A and 3Q0199369E) and pressed-steel wishbones only. For vehicles with a steel subframe, please use PFF85-802. For vehicles requiring further on-car caster adjustment, please use PFF3-902G.
OEM Part Number: Bush = 5C0407183 / 5Q0407183 / 81A407183
OEM Part Number: Arm = 5C0407151 / 5Q0407153 / 5Q0407151R / 5Q0407152R
OEM Part Number: Arm = 1K0407151BE / 1K0407152BE / 81A407151C / 81A407152C
3. PFF85-803-25 – Front Anti Roll Bar Bush 25mm
Please check anti roll bar diameter before ordering.
OEM Part Number: 5Q0411303AB / 5Q0 411 303 AB
3. PFF85-803-24 – Front Anti Roll Bar Bush 24mm
Please check anti roll bar diameter before ordering.
OEM Part Number: 5Q0411303N / 5Q0 411 303 N
OEM Part Number: 5Q0411303AA / 5Q0 411 303 AA
OEM Part Number: 5Q0411303R / 5Q0 411 303 R
3. PFF85-803-23.2 – Front Anti Roll Bar Bush 23.2mm
Please check anti roll bar diameter before ordering.
OEM Part Number: 5Q0411303M / 5Q0 411 303 M
OEM Part Number: 5Q0411303T / 5Q0 411 303 T
OEM Part Number: 5Q0411303Q / 5Q0 411 303 Q
3. PFF85-803-21.7 – Front Anti Roll Bar Bush 21.7mm
Please check anti roll bar diameter before ordering.
OEM Part Number: 5Q0411303L / 5Q0 411 303 L
OEM Part Number: 5Q0411303P / 5Q0 411 303 P
OEM Part Number: 5Q0411303S / 5Q0 411 303 S
11. PFR85-811-14 – Rear Lower Track Rod Outer Bush 14mm
OEM Part Number: Arm = 5Q0 501 529 G / 5Q0501529G
12. PFR85-812 – Rear Lower Track Rod Inner Bush
OEM Part Number: Arm = 5Q0501529C / 5Q0 501 529 C
13. PFR85-513G – Rear Upper Wishbone Outer Bush Camber Adjustable
PFR85-513G Rear Upper Wishbone Outer Bush is a camber adjustable version of our existing PFR85-513 Rear Wishbone Outer Bush for a variety of VAG models. Made in our Black 95A durometer material and supplied with a CNC-machined offset-bore sleeve and adjusting spanner, it offers a range of up to +/- 1.0° of on-car camber adjustment at the rear suspension knuckle.
OEM Part Number: Arm = 5Q0505323D / 5Q0 505 323 D
OEM Part Number: Arm = 5Q0505351B / 5Q0 505 351 B
OEM Part Number: Arm = 1K0505323N / 1K0 505 323 N
13. PFR85-513 – Rear Upper Wishbone Outer Bush
OEM Part Number: Arm = 5Q0505323D / 5Q0 505 323 D
OEM Part Number: Arm = 1K0505323N / 1K0 505 323 N
14. PFR85-514 – Rear Upper Wishbone Inner Bush
OEM Part Number: Arm = 5Q0505323D / 5Q0 505 323 D
OEM Part Number: Arm = 1K0505323N / 1K0 505 323 N
15. PFR85-815-21.7 – Rear Anti Roll Bar Bush 21.7mm
OEM Part Number: 5Q0511305AT /5Q0511305BF
OEM Part Number: 5Q0511305BA / 5Q0511305BE
OEM Part Number: 8V0 511 305 A / 8V0511305A
15. PFR85-815-20.7 – Rear Anti Roll Bar Bush 20.7mm
OEM Part Number: 5Q0511305AS
OEM Part Number: 5Q0511305BD
15. PFR85-815-19.6 – Rear Anti Roll Bar Bush 19.6mm
OEM Part Number: 5Q0511305AR
OEM Part Number: 5Q0511305BK
OEM Part Number: 5Q0511305BC
15. PFR85-815-18.5 – Rear Anti Roll Bar Bush 18.5mm
OEM Part Number: 5Q0511305AQ
16. PFR85-816 – Rear Trailing Arm Bush
OEM Part Number: 5Q0505541A
17. PFR85-817 – Rear Lower Arm Outer Bush
OEM Part Number: 1K0505553A / 1K0 505 553 A
OEM Part Number: 5Q0505553 / 5Q0 505 553
OEM Part Number: 5QD505553 / 5QD 505 553
18. PFR85-818 – Rear Lower Arm Inner Bush
OEM Part Number: 5Q0505311 / 5Q0 505 311
OEM Part Number: 5QD505311 / 5QD 505 311
OEM Part Number: 5QM505311 / 5QM 505 311
21. PFF3-1325 – Lower Torque Mount Small Bush
PFF3-1325 Lower Torque Mount Bush is made from our stiffest Black 95A material to provide a durable replacement for the factory rubber bush to give road or tuned vehicles a sharper throttle response and more positive gear-change without compromising ride quality and NVH. An increase in stiffness by 50% over the worn OE rubber bush helps to reduce excessive engine movement caused by the torque reaction of the engine during acceleration and deceleration, one of the biggest causes of wheel-hop on tuned FWD or front-engined vehicles. Please check which type of bracket is fitted to the vehicle before ordering. See the part numbers above and photos below for reference.
OEM Part Number: 5Q0199855J
21. PFF3-1324 – Lower Torque Mount Small Bush
Made using our Black 95A Durometer Material to increase stiffness over worn rubber by up to 50% and improve durability, preventing such things as wheel hop and imprecise gear-shifting. This bush fits the mount with the extruded bracket without voids, see part numbers above and photos below, check which bracket is fitted to the vehicle before ordering. For an extruded bracket with voids use PFF3-1320. For a cast bracket use PFF3-1321
OEM Part Number: 5Q0 199 855 AG
OEM Part Number: 5Q0 199 855 AH
21. PFF3-1320 – Lower Torque Mount Small Bush
Made using our Black 95A Durometer Material to increase stiffness over worn rubber by up to 50% and improve durability, preventing such things as wheel hop and imprecise gear-shifting. This bush fits the mount with the extruded bracket with voids, see part number above and photos below, check which bracket is fitted to the vehicle before ordering. For an extruded bracket without voids use PFF3-1324. For a cast bracket use PFF3-1321.
OEM Part Number: 5Q0 199 855 AD
30. PFF85-830P – Lower Engine Mount Insert (Large) Track Use
Suitable for higher powered cars and track cars, using a stiffer material which helps further reduce engine movement over fitting the standard PFF85-830 insert, being a stiffer material additional noise and vibration may be felt.
OEM Part Number: 5Q0198037A / 5Q0 198 037 A / 5Q0 198 037 / 5Q0198037
OEM Part Number: 8V0198037 / 8V0 198 037 / 5Q0199868 / 5Q0 199 868
OEM Part Number: 5Q0199867 / 5Q0 199 867
30. PFF85-830R – Lower Engine Mount Insert (Large) Diesel
Suitable for diesel models, using a softer material that helps reduce movement from the bush but transmits less noise and vibration over fitting the standard PFF85-830 insert.
OEM Part Number: 5Q0198037A / 5Q0 198 037 A / 5Q0 198 037 / 5Q0198037
OEM Part Number: 8V0198037 / 8V0 198 037 / 5Q0199868 / 5Q0 199 868
OEM Part Number: 5Q0199867 / 5Q0 199 867
30. PFF85-830 – Lower Engine Mount Insert (Large)
OEM Part Number: 5Q0198037A / 5Q0 198 037 A / 5Q0 198 037 / 5Q0198037
OEM Part Number: 8V0198037 / 8V0 198 037 / 5Q0199868 / 5Q0 199 868
OEM Part Number: 5Q0199867 / 5Q0 199 867
30. PFF85-832P – Lower Engine Mount (Large) Insert Track Use
Made in Purple 80A and suitable for higher powered cars and track cars, this part helps to further reduce engine movement over fitting the standard PFF85-832 insert. Increased NVH may be felt when fitted.
OEM Part Number: 5Q0198037B / 5Q0 198 037 B
OEM Part Number: 5Q0198037C / 5Q0 198 037 C / 5Q0 199 867 J
OEM Part Number: 5Q0198037F / 5Q0 198 037 F / 5Q0199867J
30. PFF85-832R – Lower Engine Mount (Large) Insert Diesel
Some NVH transmission should be expected when fitting this part to a Diesel vehicle.
OEM Part Number: 5Q0198037B / 5Q0 198 037 B
OEM Part Number: 5Q0198037C / 5Q0 198 037 C / 5Q0 199 867 J
OEM Part Number: 5Q0198037F / 5Q0 198 037 F / 5Q0199867J
30. PFF85-832 – Lower Engine Mount (Large) Insert
OEM Part Number: 5Q0198037B / 5Q0 198 037 B
OEM Part Number: 5Q0198037C / 5Q0 198 037 C / 5Q0 199 867 J
OEM Part Number: 5Q0198037F / 5Q0 198 037 F / 5Q0199867J
30. PFF85-833 – Front Lower Engine Mount Hybrid Bush (Large) – Road
PFF85-833 replaces the lower half of the original bush whilst including an insert to fit into and fill the voids in the upper bush to minimise wheel hop and improve gear-shifting. This unique bush has been designed to be fitted without subframe removal and avoids associated wheel alignment costs. .
OEM Part Number: 5Q0198037B / 5Q0 198 037 B
OEM Part Number: 5Q0198037C / 5Q0 198 037 C / 5Q0 199 867 J
OEM Part Number: 5Q0198037F / 5Q0 198 037 F / 5Q0199867J
30. PFF85-831 – Front Lower Engine Mount Hybrid Bush (Large) – Road
PFF85-831 replaces the lower half of the original bush whilst including an insert to fit into and fill the voids in the upper bush to minimise wheel hop and improve gear-shifting. This unique bush has been designed to be fitted without subframe removal and avoids associated wheel alignment costs.
OEM Part Number: 5Q0198037A / 5Q0 198 037 A / 5Q0 198 037 / 5Q0198037
OEM Part Number: 8V0198037 / 8V0 198 037 / 5Q0199868 / 5Q0 199 868
OEM Part Number: 5Q0199867 / 5Q0 199 867
30. PFF85-833P – Front Lower Engine Mount Hybrid Bush (Large) – Fast Road/Track
PFF85-833 replaces the lower half of the original bush whilst including an insert to fit into and fill the voids in the upper bush to minimise wheel hop and improve gear-shifting. This unique bush has been designed to be fitted without subframe removal and avoids associated wheel alignment costs. .
OEM Part Number: 5Q0198037B / 5Q0 198 037 B
OEM Part Number: 5Q0198037C / 5Q0 198 037 C / 5Q0 199 867 J
OEM Part Number: 5Q0198037F / 5Q0 198 037 F / 5Q0199867J
30. PFF85-831P – Front Lower Engine Mount Hybrid Bush (Large) – Fast Road/Track
PFF85-831P replaces the lower half of the original bush whilst including an insert to fit into and fill the voids in the upper bush to minimise wheel hop and improve gear-shifting. This unique bush has been designed to be fitted without subframe removal and avoids associated wheel alignment costs. This part is made in our Purple Shore A 80 for vehicles running increased power or that see occasional track use.
OEM Part Number: 5Q0198037A / 5Q0 198 037 A / 5Q0 198 037 / 5Q0198037
OEM Part Number: 8V0198037 / 8V0 198 037 / 5Q0199868 / 5Q0 199 868
OEM Part Number: 5Q0199867 / 5Q0 199 867
