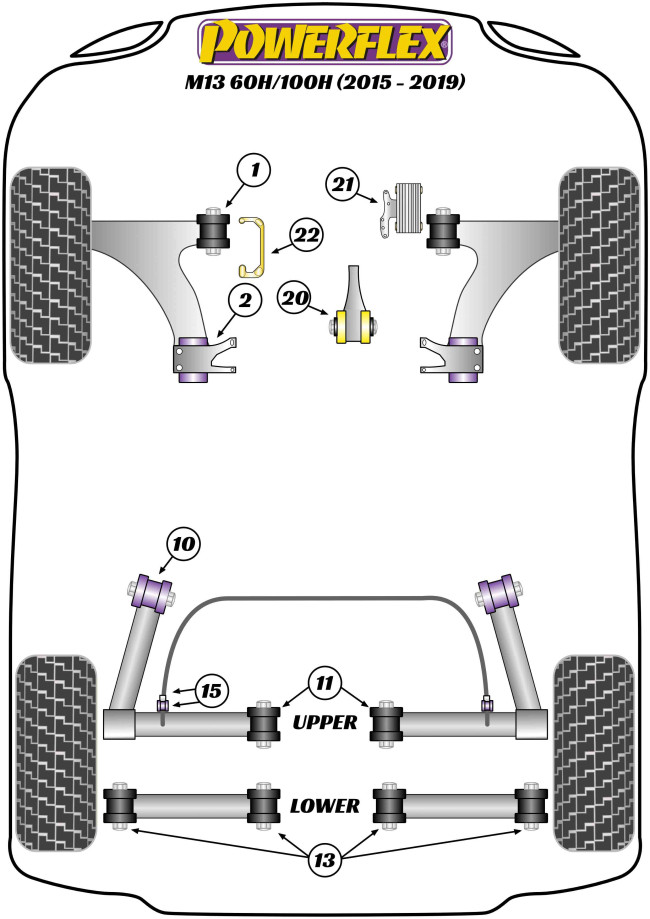

1. PFF5-1301G – Front Arm Front Bush Camber Adjustable
The offset sleeve is designed to provide +/- 0.77 degrees of on-car adjustment of camber.
OEM Part Number: 31126850398
OEM Part Number: 31126879841 / 31126879842
OEM Part Number: 31126879843 / 31126879844
1. PFF5-1301 – Front Arm Front Bush
OEM Part Number: 31126850398
OEM Part Number: 31126879841 / 31126879842
OEM Part Number: 31126879843 / 31126879844
2. PFF5-1302G – Front Arm Rear Bush Caster Offset
PFF5-1302G is a CNC-machined mount with polyurethane bush providing approx 1 deg of caster offset to improve in-corner camber gain without compromising straight-line traction. It has a knurled body to retain grease and allow free rotation of the bush, preventing torsional twist in the bush material, aiding performance, reliability and increasing longevity. PFF5-1302G has a knurled pattern body to retain grease and allow free rotation of the bush. This prevents torsional twist in the bush material, aiding performance, reliability and increasing longevity.
OEM Part Number: 31126850403 / 31126850404 (02/12/2013 to 06/11/2014)
OEM Part Number: 31126874341 / 31126874342 (01/09/2014 to 15/12/2017)
2. PFF5-1302 – Front Arm Rear Bush
The original bracket for this bush has to be reused.
OEM Part Number: 31126850403 / 31126850404 (02/12/2013 to 06/11/2014)
OEM Part Number: 31126874341 / 31126874342 (01/09/2014 to 15/12/2017)
10. PFR5-1310 – Rear Trailing Arm Front Bush
OEM Part Number: Bush = 33326850395 / 33 32 6 850 395 / 33326864237
OEM Part Number: Arm = 33 32 6 851 575 / 33 32 6 851 576
OEM Part Number: Arm = 33 30 8 842 877 / 33 30 8 842 878
11. PFR5-1311 – Rear Upper Arm Inner Bush
PFR5-1311 is made from our Black Series 95A material for ultimate chassis control. Replaces inner position only on rear upper arms, the outer position is a spherical bearing.
OEM Part Number: 33326884693 / 33 32 6 884 693
OEM Part Number: 33326870773 / 33 32 6 870 773
OEM Part Number: 33326851563 / 33 32 6 851 563
13. PFR5-1313 – Rear Lower Arm Bush
PFR5-1313 is made from our Black Series 95A material for ultimate chassis control. Replaces inner and outer positions on rear lower arms.
OEM Part Number: 33326851569 / 33 32 6 851 569
15. PFR5-1315 – Rear Anti Roll Bar Link Rod Bush
OEM Part Number: 33506862865
20. PFF5-1320 – Lower Engine Mount Large Bush
Adding the insert will stiffen the bush further and potentially increase NVH, especially on diesel-engined vehicles.
OEM Part Number: 22116885788 (current)
OEM Part Number: 22116875190 (to 23.12.2016)
OEM Part Number: 22116853470 (to 03.09.2014) / 22116872114 (to 04.05.2015)
21. PFF5-1321 – Upper Engine Mount Insert Kit
PFF5-1321 Upper Engine Mount Insert are a simple, but effective rod design made from our Yellow 70A material. They fill the key voided areas of the mount to restrict engine roll, providing the perfect balance of compliance and rigidity, making them ideally suited for your daily driven vehicle.
OEM Part Number: 22116853446 / 22116875630 / 22118835566
OEM Part Number: 22116875628 / 22118743621 / 22118835574
OEM Part Number: 22116885934 / 22118835568
22. PFF5-1322 – Gearbox Mounting Bush Insert
PFF5-1322 Gearbox Mounting Bush Insert is made using Yellow 70A durometer material. It has been designed to fill the voids in the OE mount for an effective and affordable solution to stiffening the original rubber. It will not fit the GP3 model.
OEM Part Number: 22316853453
OEM Part Number: 22316853449
PF5-4660 – Jack Pad Adaptor
PF5-4660 is a polyurethane jack pad to fit into the plastic lifting points found on most modern BMW and related vehicles and is designed to help lift stability and location, whilst protecting the underside of your vehicle.
OEM Part Number: 51717039760 / 51717123311 / 51718268885
OEM Part Number: 51717169981 / 51717065919 / 51717001650
OEM Part Number: 51717189259 / 51717164761
